- Brightness: 6500 lumens
- Resolution: 1920 x 1200 (WUXGA)
- Lens shift function (vertical: ±67%, horizontal: ±35%, powered)
| General | |||
| Panel Type | 0.76″ LCD panel x 3 | ||
| Lamp | N.A. | ||
| Brightness | 6,500 lumens | ||
| Lens | F1.7-2.3, f26.8-45.5mm (powered zoom: 1.6-2.8:1) | ||
| Contrast (Full on / Full off) | 3,000,000:1 | ||
| Resolution (Native / maximum) | WUXGA | ||
| Screen Size | 40″ – 400″ | ||
| Lens Shift | Vertical ±67%, horizontal ±35% | ||
| Keystone Correction Range | Vertical ±25° or horizontal ±30° | ||
| Weight | approximately 16.9kg | ||
| Dimensions (W x H x D) | 560 x 205 x 443.2 mm | ||
| Power Consumption | 525W | ||

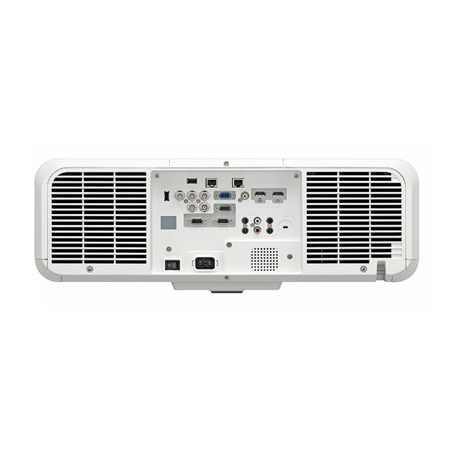

| Terminals | HDMI in (19-pin x 1) RGB1&2 in (D-sub HD 15-pin x 1, 5BNC x 1) Video in (Pin Jack x 1) Monitor out (D-sub 15-pin x 1) Audio in (Pin jack x 2, M3 x 2) Audio out (M3 x 1) Serial in (D-sub 9-pin x 1) Remote In x2 (M3 x 1),(D-sub 9-pin x 1) LAN (RJ-45 x 1) Digital Link (RJ-45 x 1) Memory Viewer/Pairing (USD type A x 1) DC out (USB Type A x 1, DC5 5 V/S A) |
||
| Optional Accessories | ET-PKE301B (Bracket assembly) ET-PKE200H (High ceiling mount bracket) ET-PKE200S (Low ceiling mount bracket) ET-RFM100 (Replacement filter unit ET-WM300 (Wireless module) |
||
| Optional Lens | Zoom lens | ET-ELW22 (0.8-1.0:1) ET-ELW20 (1.2-1.7:1) ET-ELT20 (2.7-4.5:1) ET-ELT21 (4.4-7.1:1) |
|
| Fixed focus lens | ET-ELW21 (0.8:1) | ||
| Standard Accessories | Software CD-ROM Wireless / wired remote control & batteries Power cord |
||
