商品說明
- Brightness: 7000 lumens
- Resolution: 1280 x 800 (WXGA)
- Lens shift function (vertical: 60%, horizontal: ±10%, powered)
Various optional lens
| General | |||
| Panel Type | 0.76″ LCD panel x 3 | ||
| Lamp | 400W UHM | ||
| Brightness | 7,000 lumens | ||
| Lens | F1.7-2.3, f26.9-45.4mm (powered zoom: 1.7-2.8:1) | ||
| Contrast (Full on / Full off) | 5,000:1 | ||
| Resolution (Native / maximum) | WXGA | ||
| Video Compatibility | PAL, PAL-M, PAL-N, PAL60, SECAM, NTSC, NTSC4.43 | ||
| Screen Size | 40″ – 400″ | ||
| Lens Shift | Vertical ±60%, horizontal ±10% | ||
| Keystone Correction Range | Vertical ±40° or horizontal ±30° | ||
| Weight | approximately 10.6kg | ||
| Dimensions (W x H x D) | 530 x 177 x 445 mm | ||
| Power Consumption | 575W | ||

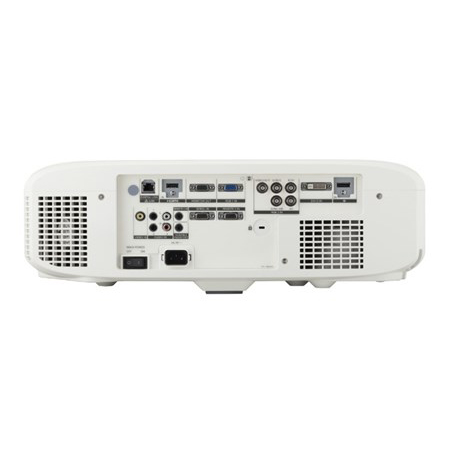

| Terminals | DVI-D in (24-pin x 1, HDCP-compatible) HDMI in (19-pin x 1) RGB1&2 in (D-sub HD 15-pin x 1, 5BNC x 1) Video (Pin Jack x 1) Monitor out (D-sub 15-pin x 1) Serial in (D-sub 9-pin x 1) Remote In x2 (M3 x 1),(D-sub 9-pin x 1) LAN /Digital Link (RJ-45 x 1) Audio in/out |
||
| Replacement Lamp | ET-LAE300 | ||
| Optional Accessories | ET-RFE300 (Replacement filter unit ET-PKE200B (Bracket assembly) ET-PKE200H (High ceiling mount bracket) ET-PKE200S (Low ceiling mount bracket) |
||

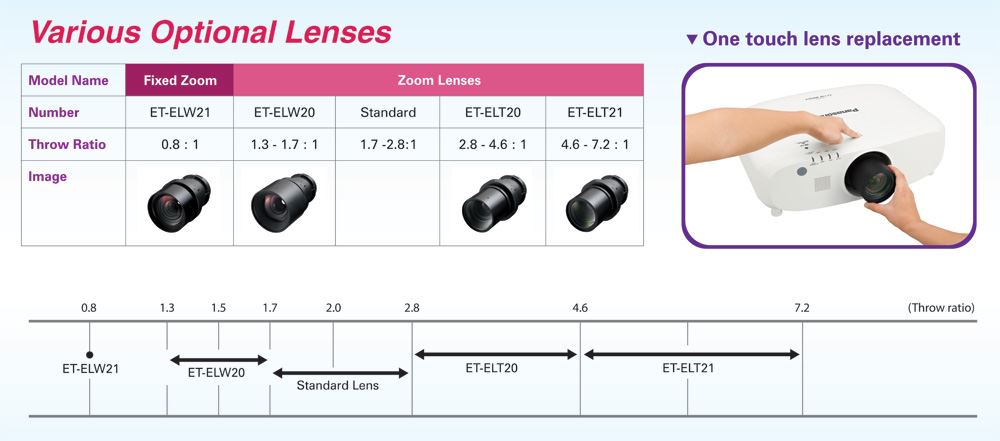

| Optional Lens | Zoom lens | ET-ELW22 (0.8-1.0:1) ET-ELW20 (1.3-1.7:1) ET-ELT20 (2.8-4.6:1) ET-ELT21 (4.6-7.2:1) |
|
| Fixed focus lens | ET-ELW21 (0.8:1) | ||
| Standard Accessories | Software CD-ROM Wireless / wired remote control & batteries Power cord |
||
