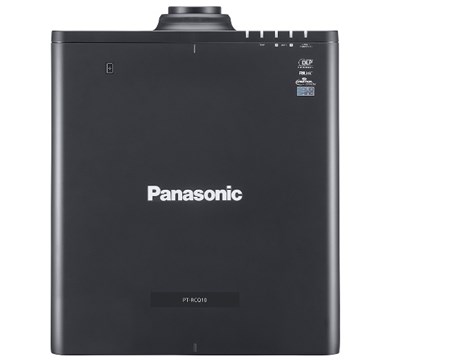

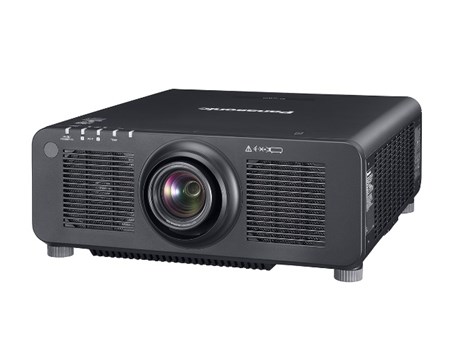

Panasonic 1-Chip DLP™ Projector PT-RCQ10

  • 光度輸出: 10,500 流明 (中央部份)；對比度 : 10,000:1
  • 解像度: 4,608,000 像素 / 2715 x 1697點
  • 採用Laser diode 光源，可長時間使用
分類： , , 標籤：

商品說明

  • 光度輸出: 10,500 流明 (中央部份)；對比度 : 10,000:1
  • 解像度: 4,608,000 像素 / 2715 x 1697點
  • 採用Laser diode 光源，可長時間使用
  • 獨立的 LAN/DIGITAL LINK 終端
  • 數據克隆功能
  • 獨有的對比度同步和快門同步功能
  • 快速開關模式
  • 監控軟件和預警軟件
  • 多單元亮度和顏色控制
一般規格
面板 0.67″ 1片式DLP投影機
燈泡 N.A. (Laser diodes 光源)
亮度 10,000流明 / 10,500流明(中央部份)
鏡頭 選配
對比度 10,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
解像度 4,608,000 像素 / 2715 x 1697點 (使用平滑像素驅動：開啟)
影像大小(對角) 1.27–15.24 m (50–600 in), 1.27–5.08 m (50–200 in) with ET-DLE055, 2.54–8.89 m (100–350 in) with ET-DLE035, 2.54–10.16 m (100–400 in) with ET-DLE020, 16:10 aspect ratio
鏡頭移動功能 垂直 +50%, -16% 橫向 +30%, -10% (個別鏡頭移動範圍請參閱宣傳單張)
梯型矯正範圍 Vertical: ±40° (±5° with ET-DLE020, ±16° with ET-DLE060, ±22° with ET-DLE105/ET-DLE085/ET-DLE055, +5° with ET-DLE035),
Horizontal: ±15° (±10° with ET-DLE060) (cannot be operated with ET-DLE035/ET-DLE020)
重量 大約 24.2 kg (包括鏡頭)
大小(闊x高x深) 498 x 200 x 581 mm
功率 1,100 W
接駁終端 SDI In : BNC x 1 : 3G/HD-SDI Input
HDMI In : HDMI 19-pin x 1
DVI-D In : DVI-D 24-pin x 1
Multi Projector Sync In : BNC x 1
Multi Projector Sync Out : BNC x 1
Serial In : D-sub 9-pin (female) x 1
Serial Out : D-sub 9-pin (male) x 1
Remote 1 In : M3 x 1 for wired remote control
Remote 1 Out : M3 x 1 for link control (for wired remote control)
Remote 2 In : D-sub 9-pin (female) x 1 for external control (parallel)
LAN : RJ-45 x 1 for network connection, 10Base-T/100Base-TX, compliant with PJLink™ (Class 2), Art-Net
Digital Link : RJ-45 x 1 for network, DIGITAL LINK connection (HDBaseT™ compliant), 100Base-TX, compatible with Art-Net, PJLink™ (Class 2), Deep Color, HDCP 2.2, 4K/60p signal input
USB : USB Connector (Type A) x 1 for Cloning/Wireless Module (output 5 V/500 mA)
Expansion Slot : Open slot for SLOT NX compatible interface board
燈泡型號 NA
可選購配件 ET-PKD130H 6-axis, High ceiling mount bracket
ET-PKD120H High ceiling mount bracket
ET-PKD120S Low ceiling mount bracket
ET-PKD130B Projector mount bracket
ET-MDN12G10 Interface board for 12G-SDI input
ET-MDNHM10 Interface board for HDMI® (HDCP 2.2) input
ET-MDNDV10 Interface board for DVI input
ET-MDNDP10 Interface board for DisplayPort™
AJ-WM50 series Wireless module
ET-YFB200G Digital Link Switcher
ET-YFB100G Digital Interface Box
ET-UK20 Geometry Manager Pro Software Upgrade Kit
ET-CUK10/ET-CUK10P Auto Screen Adjustment Uprgrade Kit
ET-SWA100 series Early Warning Software
ET-NUK10 NFC Upgrade Kit
可選購鏡頭 變焦鏡頭 ET-DLE020 (0.280-0.299:1)
ET-DLE060 (0.600-0.801:1)
ET-DLE085 (0.782-0.977:1)
ET-DLE105 (0.978-1.32:1)
ET-DLE150 (1.30-1.89:1)
ET-DLE170 (1.71-2.41:1)
ET-DLE250 (2.27-3.62:1)
ET-DLE350 (3.58-5.45:1)
ET-DLE450 (5.36-8.58:1)
固定焦距鏡頭 ET-DLE035 (0.380:1)
ET-DLE055 (0.785:1)
原裝配件 電源線 x 1
無線遙控器 x 1
遙控器電池 x 2
鏡頭蓋 x 1
