商品說明
PANEL
-
- Screen Size
- 55″
- Native Resolution
- 1,920 x 1,080 (FHD)
-
- Brightness(Typ.,cd/m²)
- 350

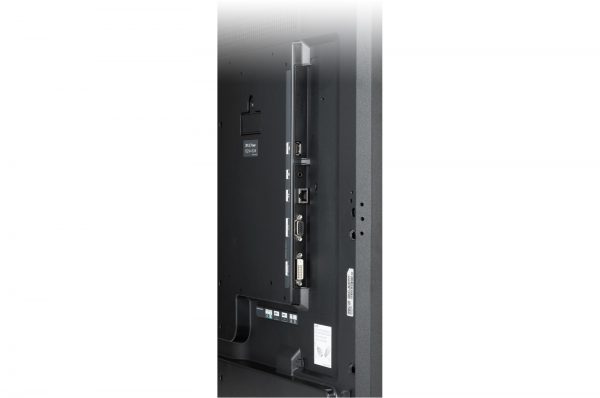

CONNECTIVITY
-
- Input
- HDMI (2), DVI-D, RGB, Audio, USB
- Output
- Audio (Off/Fixed/Variable)
-
- External Control
- RS232C in/out, RJ45 in, IR in
MECHANICAL SPECIFICATION
-
- Bezel Width
- 11.9 mm (T/R/L), 18 mm (B)
- Monitor Dimension (W × H × D)
- 1,238 x 714.9 x 54 mm
-
- Weight (Head)
- 17.5 kg
- Monitor with Optional Stand Dimensions (W x H x D)
- 1,238 x 773.4 x 219.6 mm
-
- Weight (Head+Stand)
- 20.8 kg
- Carton Dimensions (W × H × D)
- 1,330 x 807 x 170 mm
-
- Packed Weight
- 21.7 kg
- VESA™ Standard Mount Interface
- 300 x 300 mm
ENVIRONMENT CONDITIONS
-
- Operation Temperature
- 0°C to 40°C
- Operation Humidity
- 10 % to 80 %
POWER
-
- Power Supply
- 100-240V~, 50/60Hz
- Power Type
- Built-In Power
POWER CONSUMPTION
-
- Typ. / Max.
- 65 W / 100 W
- Smart Energy Saving
- 45.5 W
SOUND
-
- Speaker
- 20 W (10 W x 2)
STANDARD (CERTIFICATION)
-
- Safety
- IEC 60950-1 / EN 60950-1 / UL 60950-1
- EMC
- FCC Class “A” / CE / KC
-
- ErP / Energy Star
- Yes (EU Only) / Yes (Energy Star 8.0)
MEDIA PLAYER COMPATIBILITY
-
- OPS type compatible
- Yes
- External Media player Attatchable
- Yes (MP500 / MP700)
SOFTWARE COMPATIBILITY
-
- Content Management Software
- SuperSign CMS
- Control and Monitoring Software
- SuperSign Control / Control+
ACCESSORY
-
- Basic
- Remote Controller, Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver
- Optional
- Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), Wi-Fi Dongle (AN-WF500), Touch Overlay (KT-T55E)
GENERAL
-
- Region
- Global
