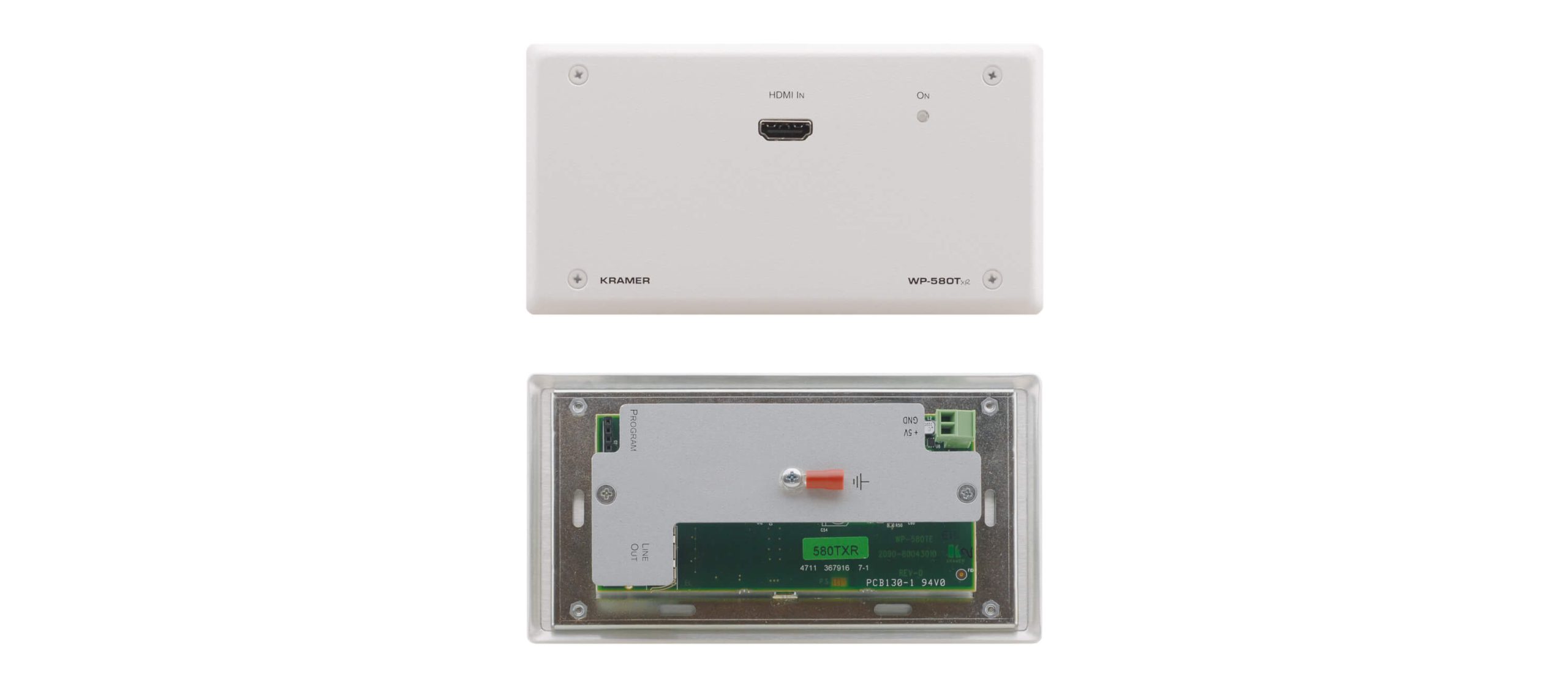

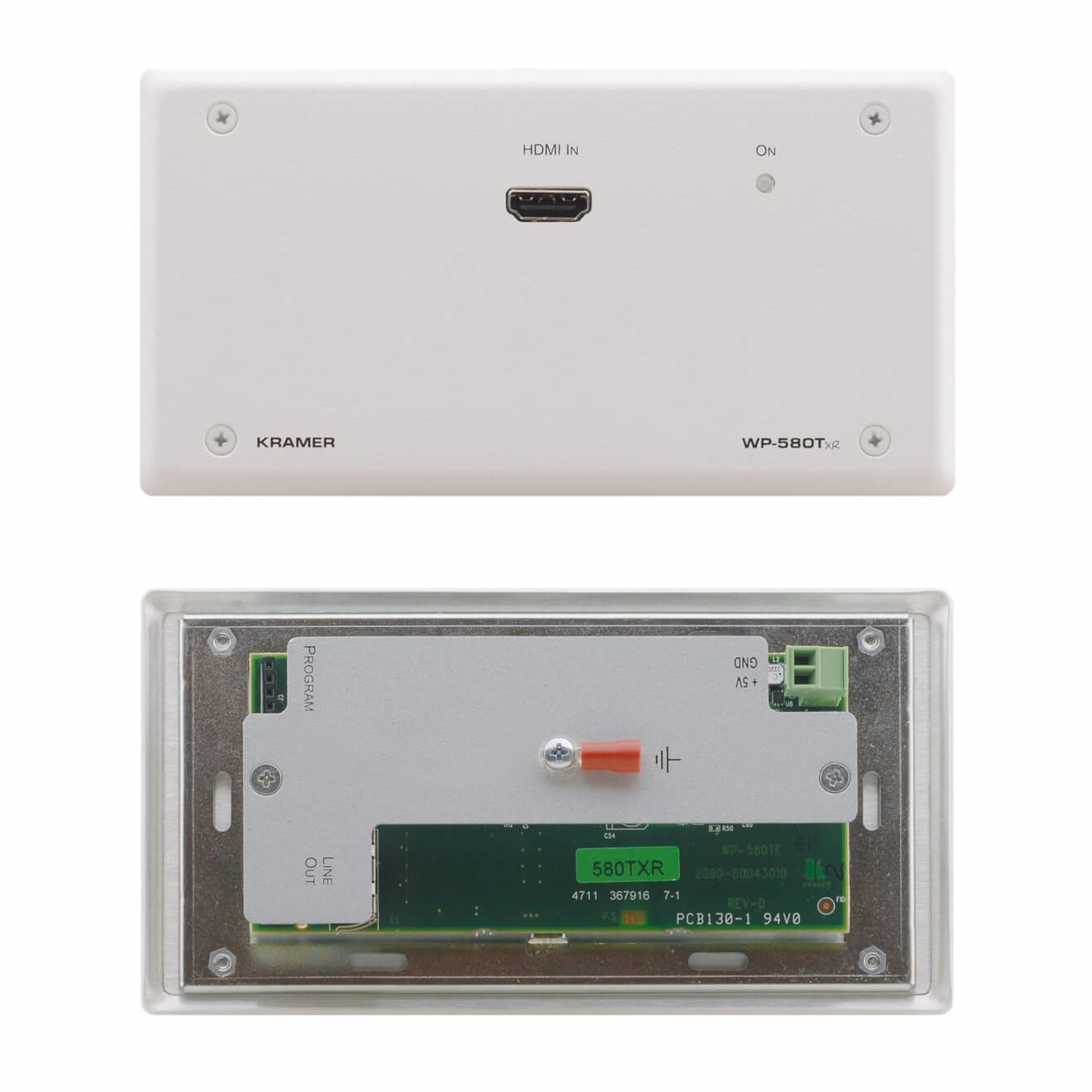

WP−580Txr is an extended range, HDBaseT wall plate transmitter for 4K@60Hz (4:2:0) HDMI signals over twisted pair. WP−580Txr inputs HDMI signals and converts them into an HDBaseT twisted pair signal that it transmits to a WP−580Rxr receiver. The WP–580Txr(D) model is supplied with a Midway Size 2 gang DECORA® design frame.
- Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel) in normal mode; 4.95Gbps (1.65Gbps per graphic channel) in ultra mode.
- HDTV Compatible.
- HDCP 2.2 Compliance.
- HDBaseT™ Technology.
- HDMI Support — Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD.
- 3D Pass–Through.
- EDID PassThru — Passes EDID signals between the source and display.
- 2K & 4K Support in Normal Mode.
- System Range — Up to 130m (430ft) normal mode; up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using recommended Kramer cables (see CABLES).
- Indicators — Status LEDs for input, output, link and power.
APPLICATIONS
- Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios.
