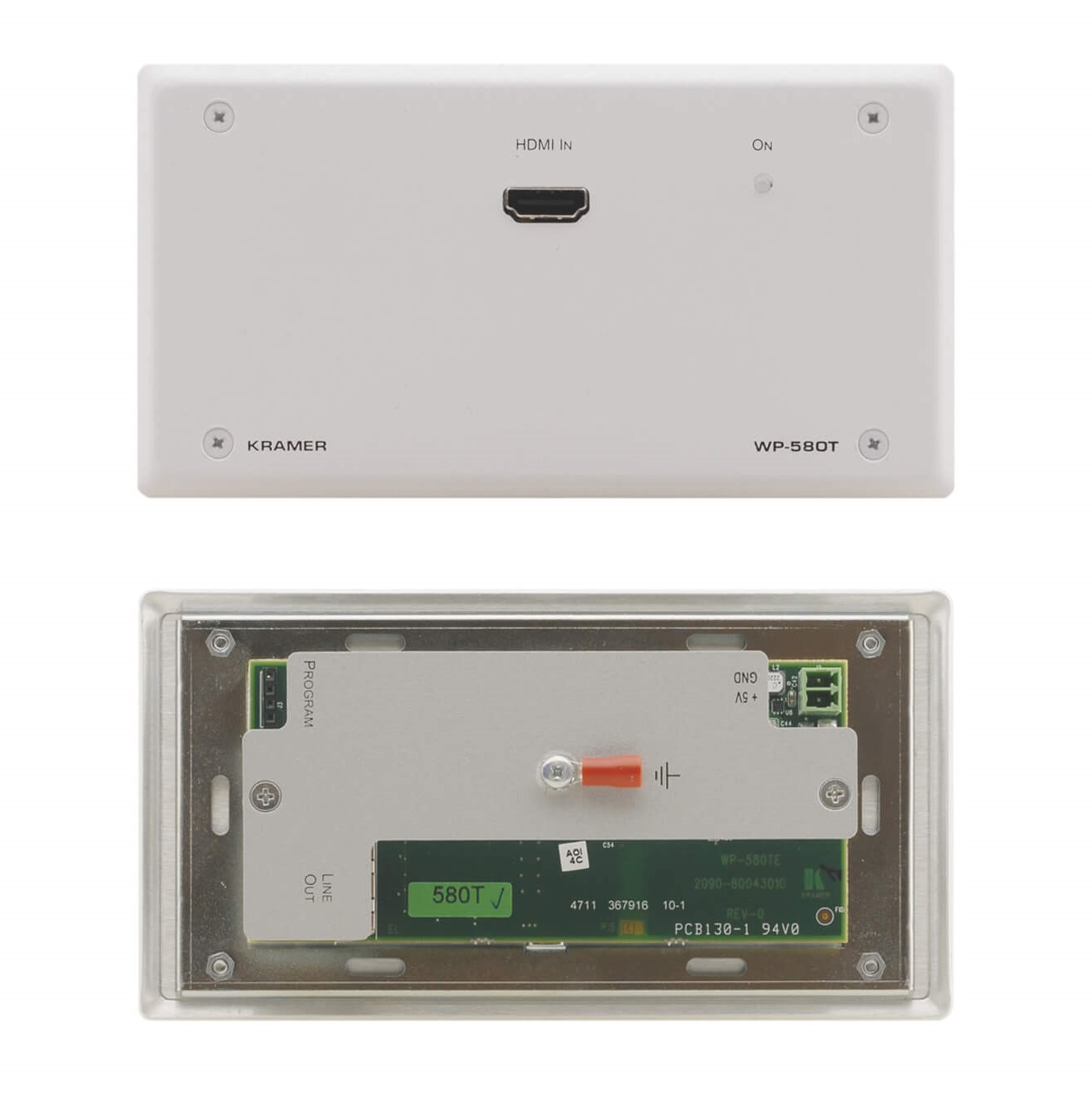

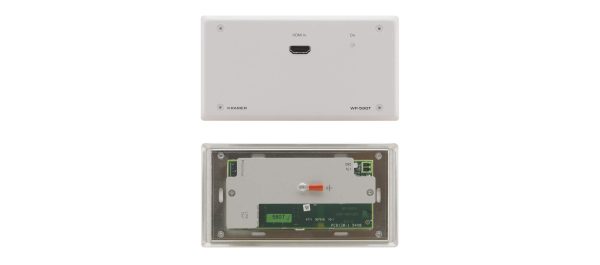

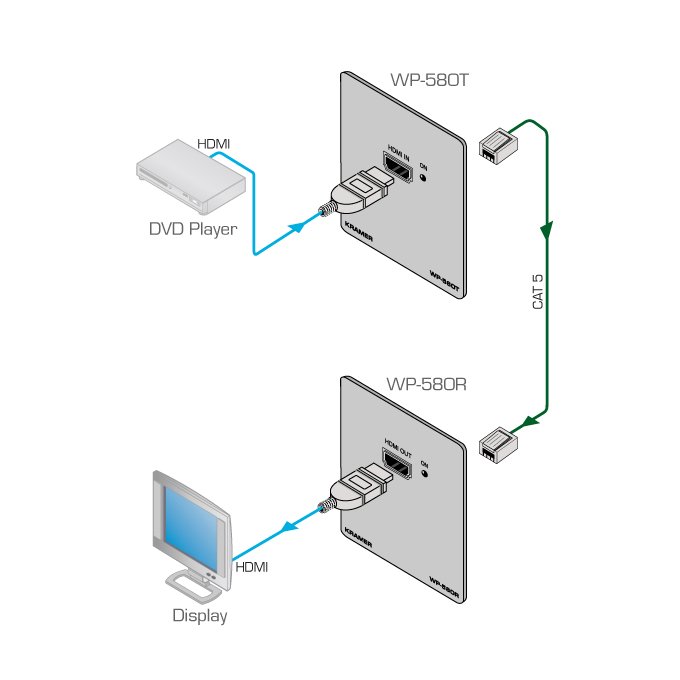

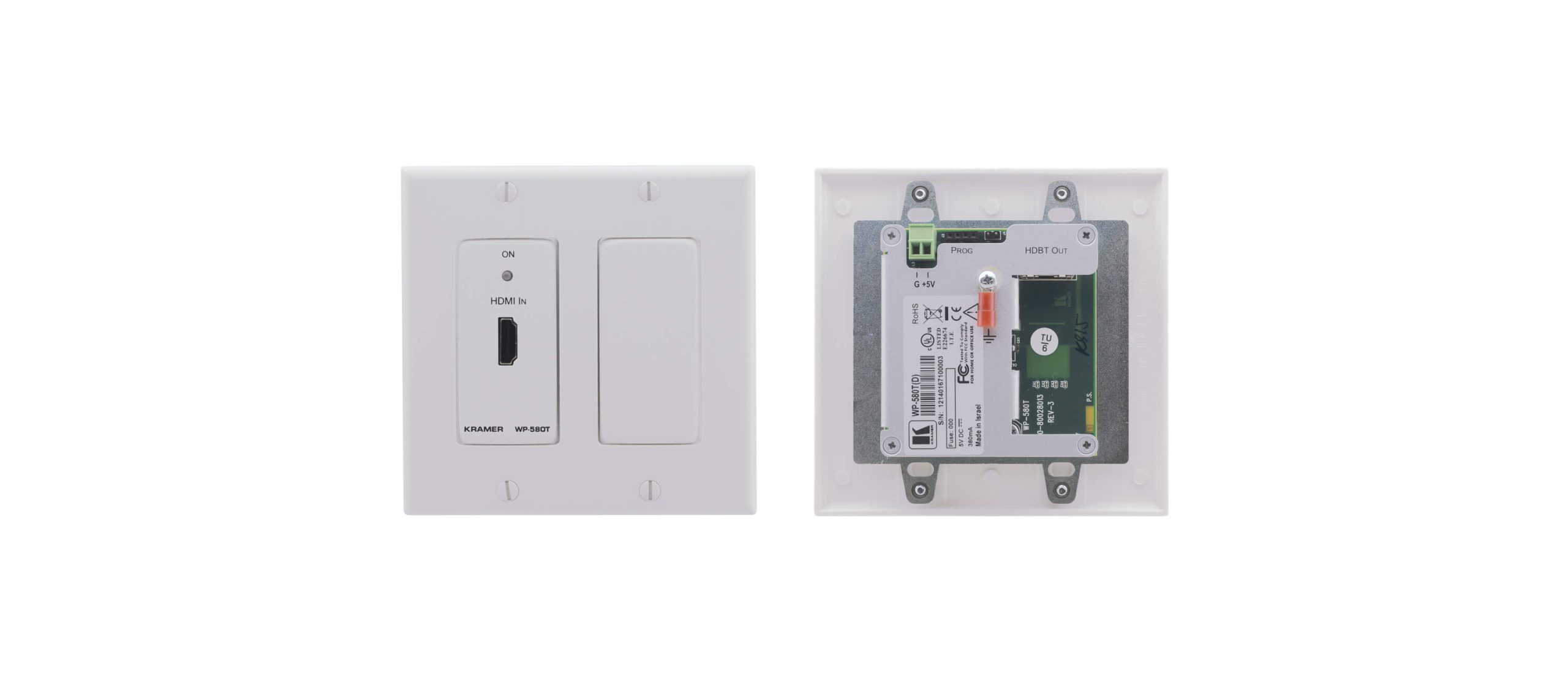

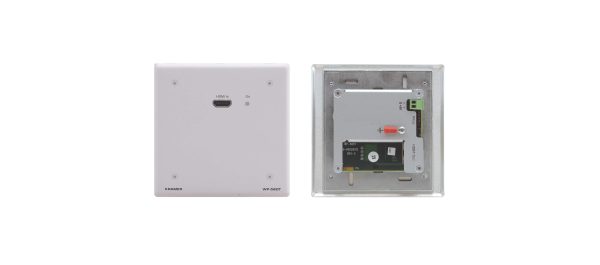

The WP−580T is a high−performance, HDBaseT twisted pair wall plate transmitter for 4K@60Hz (4:2:0) HDMI signals. The WP−580T inputs the signals and converts them into an HDBaseT twisted pair signal that it transmits to a WP−580R receiver. The WP–580T(D) model is supplied with a Midway Size 2 gang DECORA® design frame.
- Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
- HDTV Compatible.
- HDCP 2.2 Compliance.
- HDBaseT™ Technology.
- HDMI Support — Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD, CEC.
- 3D Pass–Through.
- EDID PassThru — Passes EDID signals between the source and display.
- 2K & 4K Support.
- System Range — Up to 70m (230ft).
- Cable — For optimum range and performance using HDBaseT™, use Kramer’s BC–HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non–Kramer CAT 6 cable may not reach these ranges.
- Indicators — Status LEDs for input, output, link and power.
- Dimensions — 12.4cm x 3.12cm x 7.9cm (4.88″ x 1.29″ x 3.12″) US; 15.1cm x 2.96cm x 8.6cm (5.95″ x 1.17″ x 3.39″), 15.1cm x 2.96cm x 8.0cm (5.95″ x 1.17″ x 3.15″) EU (W, D, H).
APPLICATIONS
- Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios.
