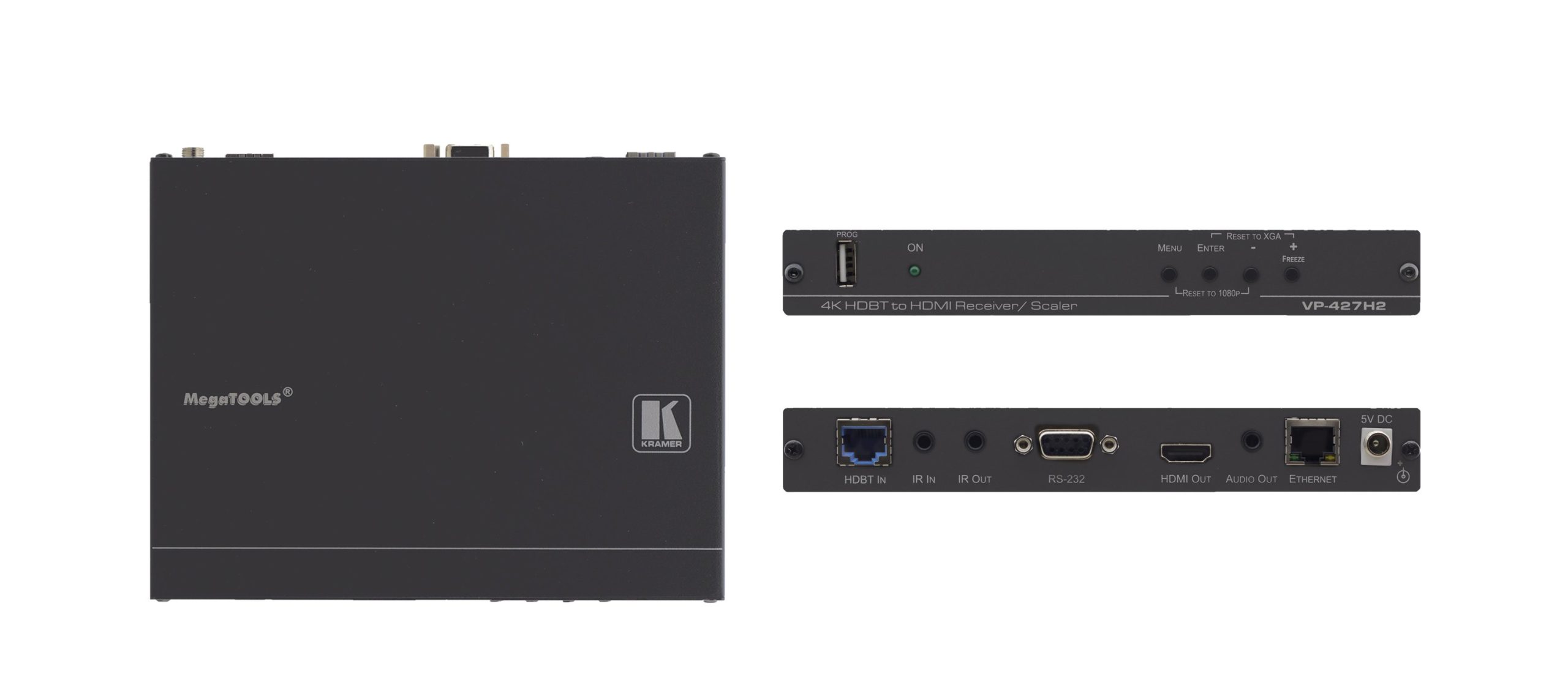

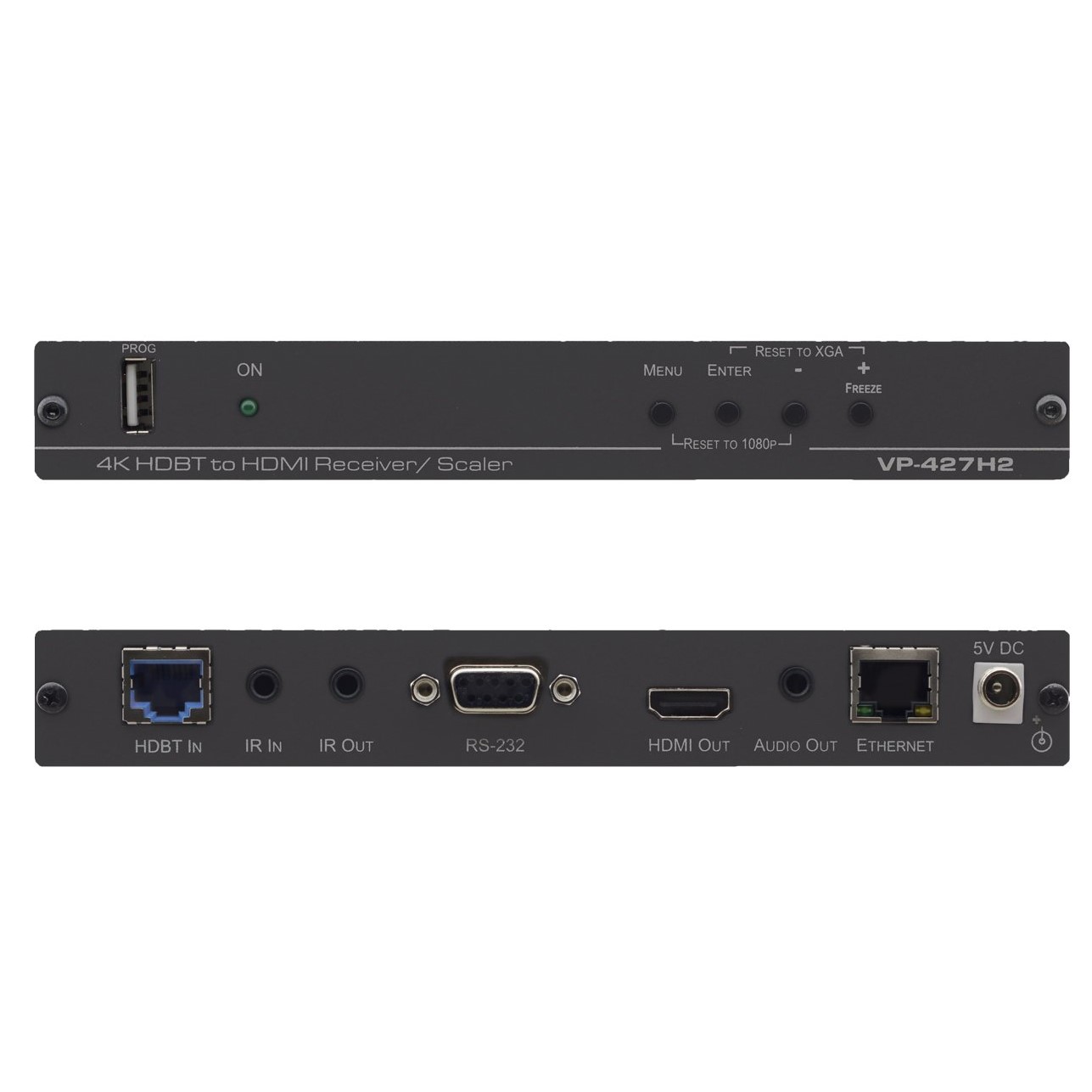

Kramer VP-427H2

4K60 4:4:4 HDMI HDCP 2.2 Receiver/Scaler over Extended–Reach HDBaseT

分類: , 標籤:

商品說明

VP‑427H2 is a high−performance receiver/scaler for extended−reach HDBaseT twisted pair, HDMI™, bidirectional RS−232 and IR signals. The unit receives an HDBaseT signal that it converts to HDMI and passes Ethernet, IR and RS−232 signals. It also de−embeds and outputs an unbalanced stereo audio signal, and up− or down−scales the picture to match the resolution of the HDMI monitor.

  •  Max. Output Resolution (HDMI) — Up — and down–scales to any resolution up to 4K@60Hz (4:4:4).
  •  Max. Input Resolution (HDBaseT) — HDBaseT input resolution up to 4K@60Hz (4:2:0).
  •  HDMI Support — HDCP 1.4 / 2.2. 4K60, CEC, xvYCC color (on input), Dolby TureHD/DTS–HD Master Audio as specified in HDMI 2.0.
  •  Audio Support — Embedded and analog (supporting LPCM 2CH) for the output.
  •  HDBaseT Data Tunneling — Supports Ethernet tunneling, as well as bidirectional tunneling for RS–232 and IR control.
  •  On–Screen Display (OSD) — For easy setup and adjustment, accessible via the front–panel buttons.
  •  Constant Sync — Maintains sync on the output, even if the input video signal is lost or interrupted.
  •  System Range — Up to 100m (328ft) at 4K.

APPLICATIONS

  •  Home theater
  •  Presentation and multimedia
  •  Rental and staging
