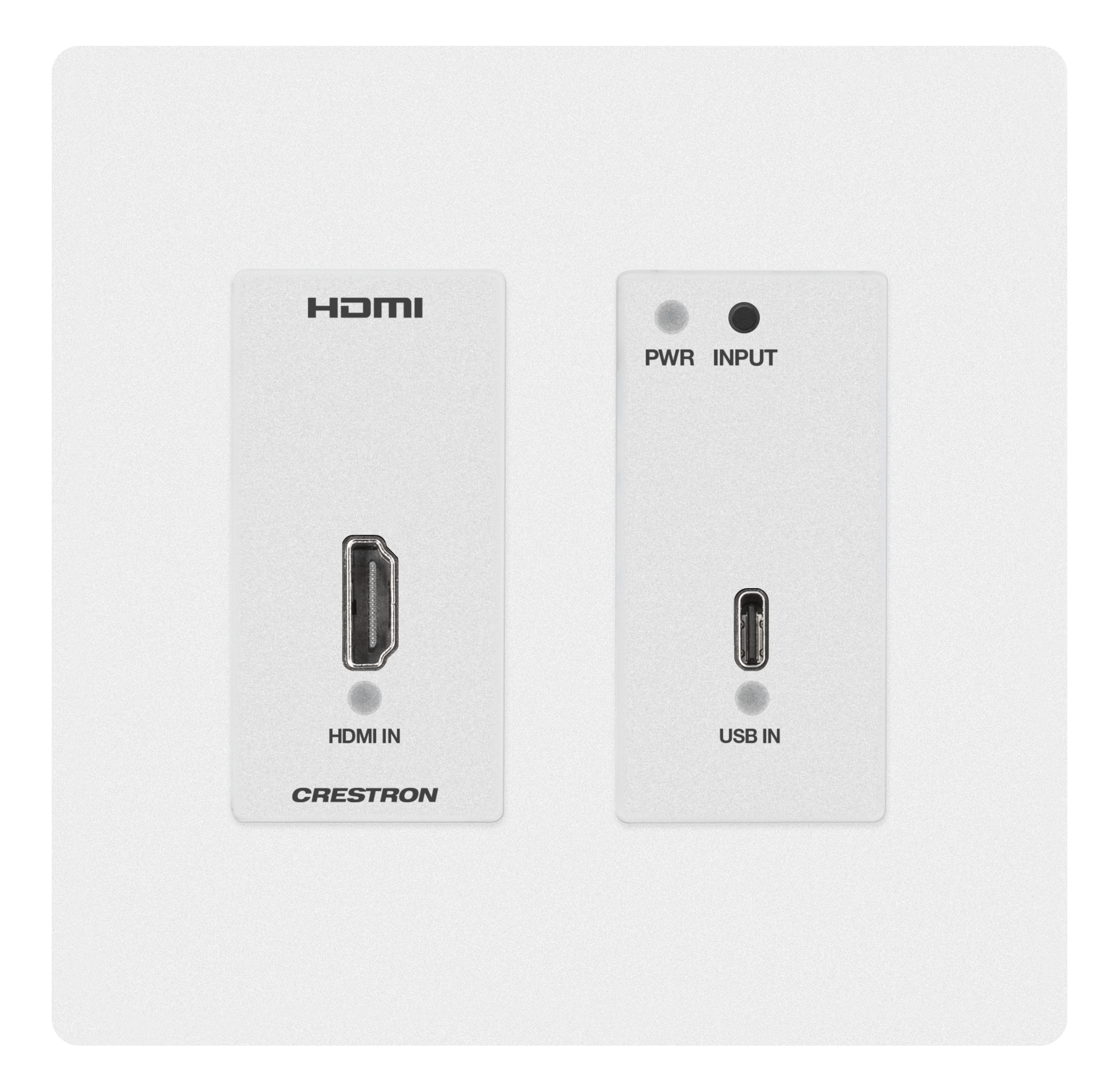

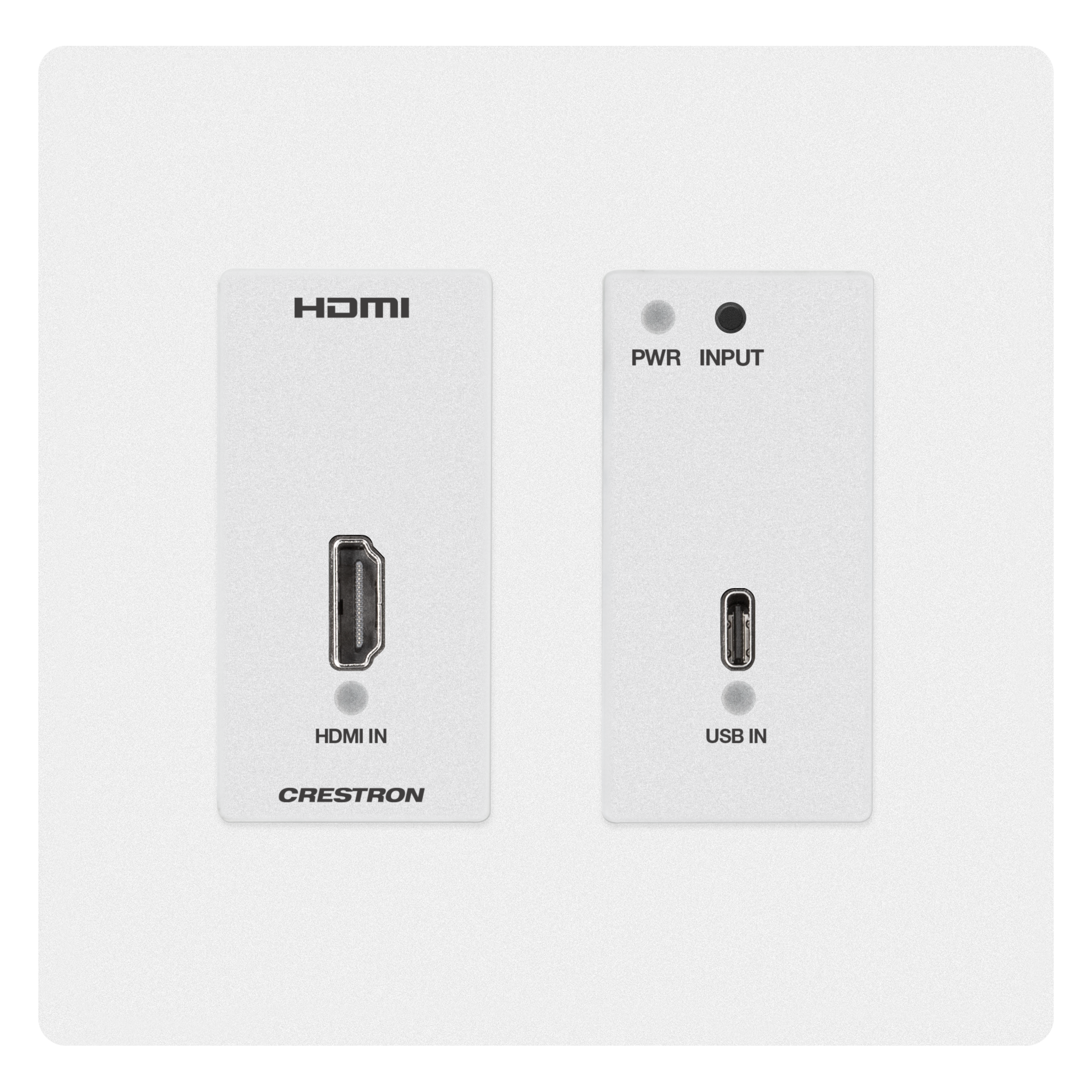

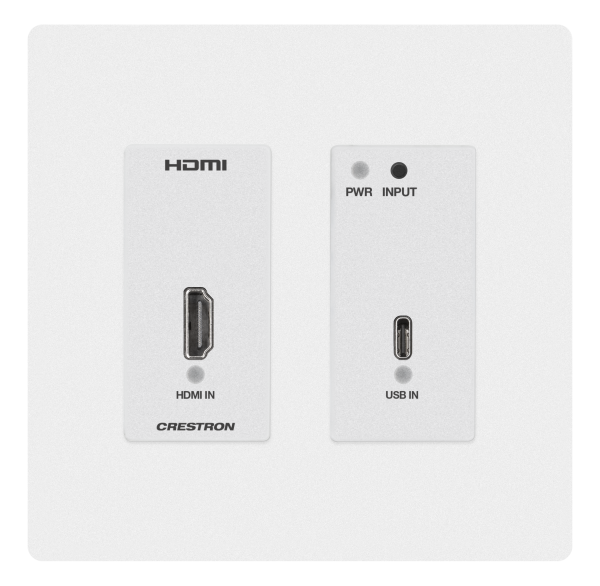

Crestron HD-TX-4KZ-211-2G-W

DM Lite® 4K60 4:4:4 Transmitter and 2×1 Auto-Switcher for HDMI® and USB-C® DisplayPort™ Signal Extension over CATx Cable, Wall Plate, White

Interoperability with a DM Lite® receiver or DMPS Lite™ switcher to provide point-to-point extension of an HDMI® or USB-C® DisplayPort™ signal over a CATx cable. Supports 4K60 4:4:4 video, HDR10+, and HDCP 2.3. Provides one HDMI input and one USB-C DisplayPort input with automatic switching capability. Mounts into a 2-gang electrical box.
分類： , 標籤：

商品說明

The HD-TX-4KZ-211-2G is a DM Lite® 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite™ switcher. The HDMI® input of the HD-TX-4KZ-211-2G enables the transmission of an HDMI signal. The USB-C® input with DisplayPort™ Alt Mode capability enables the transmission of a DisplayPort AV signal. A CAT5e or higher twisted pair cable is used to connect the HD-TX-4KZ-211-2G to the DM Lite receiver or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported. 1

The HD‑TX‑4KZ‑211‑2G is available in two models: HD‑TX‑4KZ‑211‑2G-W (white) and HD‑TX‑4KZ‑211‑2G-B (black).

Interoperability with a DM Lite Receiver or DMPS Lite Switcher
The DM Lite output port of the HD-TX-4KZ-211-2G must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 receivers are the HD‑RX‑4KZ‑101, HD‑RXA‑4KZ‑101, HD‑RXC‑4KZ‑101, and HD‑RXCA‑4KZ‑101. Supported DM Lite 4K60 4:2:0 receivers are the HD‑RX‑101‑C‑E, HD‑RXC‑101‑C‑E, HD-RX-201-C-E, HD‑RX‑101‑C‑1G‑E, and HD‑RXC‑101‑C‑1G‑E. Supported DMPS Lite switchers are the HD‑PS622, HD‑PS621, HD‑PS402, HD‑PS401, and HD‑RX‑4K‑210‑C‑E(‑POE).

The HD-TX-4KZ-211-2G can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-TX-4KZ-211-2G. In addition, control system programming and .AV Framework™ software support of the HD-TX-4KZ-211-2G is hosted by the switcher.

4K60 4:4:4 and HDR Support
The HD-TX-4KZ-211-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2

Automatic Switching of Inputs
When the HD-TX-4KZ-211-2G is used with a DMPS Lite switcher, the web interface of the switcher or control system programming hosted by the switcher can be used to configure the AV switching behavior of the HD-TX-4KZ-211-2G. Switching between the HDMI and USB-C DisplayPort inputs can occur based on the last connected input or on the routing priority assigned to each input. In addition, the input selection push button on the front of the HD-TX-4KZ-211-2G enables the desired input to be selected manually.

Two-Gang Wall Plate Design
The HD‑TX‑4KZ-211-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD‑TX‑4KZ‑211‑2G can receive power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher.3

Key Features
  • Interoperability with a DM Lite® receiver or DMPS Lite™ switcher
  • Point-to-point extension of an HDMI® or USB-C® DisplayPort™ signal over a CAT5e or higher cable
  • USB-C input with DisplayPort Alt Mode capability
  • DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
  • 4K60 4:4:4 capability
  • HDR10, HDR10+, and Dolby Vision® video formats
  • Compliance with HDCP 2.3
  • Automatic switching of HDMI and USB-C DisplayPort inputs
  • CEC (Consumer Electronics Control) pass-through capability
  • EDID pass-through capability
  • Two-gang wall plate design with white finish
  • Decorator style faceplate required (FP-G2-DM Series sold separately)
  • Power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher
  1.  For DM Lite connections, use Crestron DM-CBL-8G, Crestron DM‑CBL‑ULTRA, or third-party CAT5e or higher cable. To safeguard against unpredictable environmental electrical noise that may impact performance at resolutions above 1080p, shielded cable and connectors are recommended for all applications and are required when bundling multiple cables in a wire run. Cables are sold separately.
  2. For HDMI inputs, 4K60 4:4:4 performance and HDR support require the use of HDMI cables and couplers with a minimum TMDS bandwidth of 18 Gbps. If 4K60 4:2:0 or 4K30 4:4:4 performance is acceptable, cables and couplers with a minimum bandwidth of 10.2 Gbps may be used. Bandwidth loss is cumulative; therefore, performance may be reduced when inserting multiple cables and couplers inline.For USB-C DisplayPort inputs, 4K60 4:4:4 performance and HDR support require the use of USB 3.2 Gen 1 (5 Gbps) cables with support for DisplayPort Alt Mode (DisplayPort 1.4 video, 4K60 4:4:4, 2 lanes). Cables are sold separately.
  3. When a DM Lite wall plate transmitter is paired with a DM Lite surface-mountable receiver, the power pack included with the receiver is used to power both devices.When a DM Lite transmitter is paired with a DMPS Lite switcher, the switcher provides power to the DM Lite transmitter.

    If a wall plate transmitter is paired with a wall plate receiver, the devices must be powered independently by a PW-2407WUL power pack (sold separately) for each device. A wall plate transmitter and wall plate receiver cannot provide power to the remote device with which it is paired.

  4. The HDMI input requires an appropriate adapter or interface cable to accommodate a Dual-Mode DisplayPort or DVI signal. CBL-HD-DVI interface cables are sold separately.
  5. CBL-USB3G1-C-C-6 and CBL-USB3G2-C-C-3 cables are sold separately.
  6. Examples of supported DM Lite 4K60 4:4:4 receivers are the HD‑RX‑4KZ‑101, HD‑RXA‑4KZ‑101, HD‑RXC‑4KZ‑101, and HD‑RXCA‑4KZ‑101. Supported DM Lite 4K60 4:2:0 receivers are the HD‑RX‑101‑C‑E, HD‑RXC‑101‑C‑E, HD‑RX‑201‑C‑E, HD‑RX‑101‑C‑1G‑E, and HD‑RXC‑101‑C‑1G‑E. Supported DMPS Lite switchers are the HD‑PS622, HD‑PS621, HD‑PS402, HD‑PS401, and HD‑RX‑4K‑210‑C‑E(‑POE).

This product may be purchased from select authorized Crestron dealers and distributors. To find a dealer or distributor, please contact the Crestron sales representative for your area. A list of sales representatives is available online at www.crestron.com/How-To-Buy/Find-a-Representative or contact us for additional information by visiting www.crestron.com/contact/our-locations for your local contact.

This product is covered under the Crestron standard limited warranty. Refer to www.crestron.com/warranty for full details.

The specific patents that cover Crestron products are listed online at patents.crestron.com.

Certain Crestron products contain open-source software. For specific information, please visit www.crestron.com/opensource.

Crestron, the Crestron logo, .AV Framework, DM Lite, and DMPS Lite are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. Dolby, Dolby Atmos, Dolby Digital, and Dolby Vision are either trademarks or registered trademarks of Dolby Laboratories in the United States and/or other countries. DTS, DTS HD, and DTS:X are either trademarks or registered trademarks of DTS, Inc. in the United States and/or other countries. HDMI and the HDMI logo are either trademarks or registered trademarks of HDMI Licensing LLC in the United States and/or other countries. Intertek and the Intertek logo are either trademarks or registered trademarks of Intertek Group in the United States and/or other countries. USB Type-C and USB C are either trademarks or registered trademarks of USB Implementers Forum, Inc. in the United States and/or other countries. DisplayPort is either a trademark or registered trademark of Video Electronics Standards Association in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography. Specifications are subject to change without notice. ©2022 Crestron Electronics, Inc.
