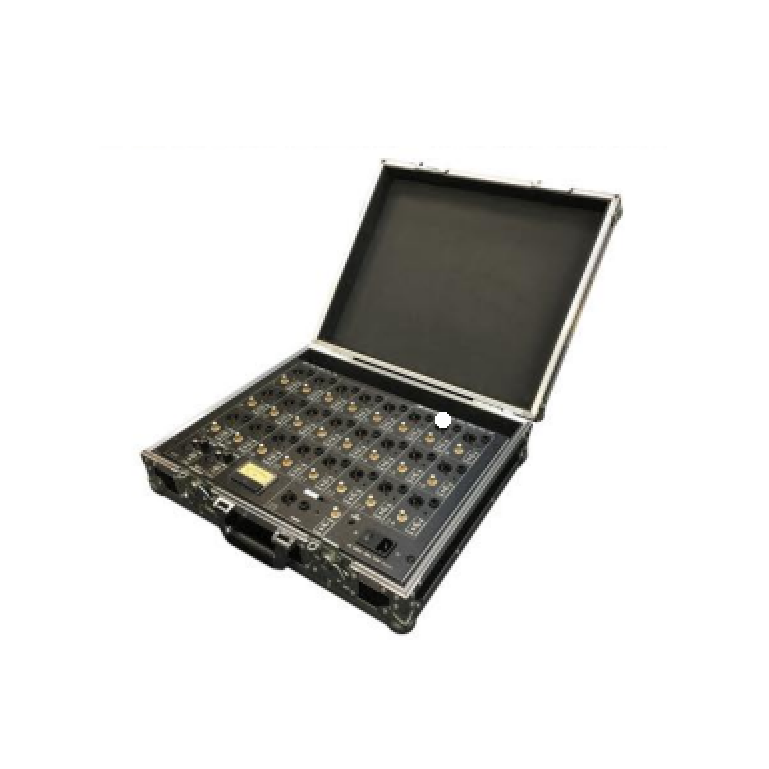

Audiolink AF-25 Portable Audio Distribution Box

Audiolink AF-25 Portable Audio Distribution Box

供記者作現場拾音或收錄同聲傳譯語言，使用AF-25後，可減少講者前台的麥克風數目，使其更為美觀。

  •  2輸入25輸出音頻訊號
  • 每組輸出有四種輸出插座 XLR-M, 6.3mm Jack socket,3.5mm Jack socket & RCA
  • 易於匹配錄音機和攝象機
  • 可以串聯多台機組使用增加輸出通道
  • 具備 平衡式MIC/LINE 輸入和輸出電平選擇器
  • 具備 VU電平表監察音量
  • 堅固開蓋式運載箱,留有位置存放連接線和指示牌



For reporters to pick up the sound or record the language of simultaneous interpretation. After using AF-25, the number of microphones in the front of the speaker can be reduced to make it more beautiful.

  • 2 inputs and 25 outputs for audio signals
  • Each group of outputs has four output sockets XLR-M, 6.3mm Jack socket, 3.5mm Jack socket & RCA
  • Easy to match recorders and cameras
  • Can be used in series to increase the output of multiple units channels
  • Equipped with balanced MIC/LINE input and output level selectors
  • Equipped with VU meters to monitor volume
  • Sturdy open-top carrying case with space for cables and indicators
分類：

商品說明

Audiolink AF-25 音源分配器

攜帶式音頻分配盒，適用於新聞發布會、同聲傳譯活動，具有2個麥克風/線路XLR-M輸入連接器，帶有音量控制和輸入/輸出電平選擇器，可直接連接到麥克風或混音器輸出。VU表可用於監測信號電平。25組輸出連接器適用於XLR-M、6.3mm耳機插孔、3.5mm迷你耳機插孔和RCA。頂部開啟式堅固箱體，有空間存放電纜。

用途 :
  • 供記者作現場拾音或收錄同聲傳譯語言。
  • 使用 AF-25 後，可減少講者前台的麥克風數目，使其更為美觀。
特點 :
  •  2輸入25輸出音頻訊號
  • 每組輸出有四種輸出插座 XLR-M,6.3mm Jack socket,3.5mm Jack socket & RCA
  • 易於匹配錄音機和攝象機
  • 可以串聯多台機組使用增加輸出通道
  • 具備 平衡式MIC/LINE 輸入和輸出電平選擇器
  • 具備 VU電平表監察音量
  • 堅固開蓋式運載箱,留有位置存放連接線和指示牌
配件包括:
  • 1.5m 電原線 x 1條
另有以下配件可供選購
  • XLR-F to 3.5mm stereo jack plug, (1.5m)
  • XLR-female to XLR-male (10m)
操作步驟：
  1. 插入電源
  2. 打開開關
  3. 根據麥克風的靈敏度設置輸入線路/麥克風開關
  4. 連接麥克風1和/或麥克風2
  5. 根據接收設備的靈敏度設置輸出線路/麥克風開關
  6. 將輸出連接到接收設備

按此查看更多資訊

Audiolink AF-25 Portable Audio Distribution Box

相關工作案例

香港律師會安裝音響系統

Audiolink AF-25 Portable Audio Distribution Box

Portable Audio Distribution Box for press conference, simultaneous interpretation event, 2x mic/Line XLR-M input connectors with volume control and input/output level selector, directly connect to microphone or Mixer output. VU meter for monitoring of signal level. 25 group output connectors suitable for XLR-M, 6.3mm phone jack, 3.5mm mini phone jack and RCA. top open strong case with space for cable storage.

Purpose:

To provide journalists with on-site recording or simultaneous interpretation language capture. After using the AF-25, the number of microphones on the stage can be reduced, making it more aesthetically pleasing.

Features:
  • 2 inputs and 25 outputs for audio signals
  • Each output has four output sockets: XLR-M, 6.3mm Jack socket, 3.5mm Jack socket & RCA
  • Easy to match with recording and video equipment
    Can be daisy-chained with multiple units to increase output channels
  • Equipped with balanced MIC/LINE input and output level selectors
  • Features a VU meter for monitoring volume levels
  • Comes with a durable top-open carrying case with space for storing cables and signs
Accessories include:
  • 1 x 1.5m power cord
The following accessories are also available for purchase:
  • XLR-F to 3.5mm stereo jack plug (1.5m)
  • XLR-female to XLR-male (10m)
operation procedure
  1. Plug in power
  2. Switch on
  3. Set the input line / mic switch according to the sensitivity of the microphone
  4. Connect mic 1 and / or mic 2
  5. Set the output line / mic switch according to the sensitivity of the receiving equipment
  6. Connect the output to the receiving equipment

Click here for more information

Relevant Job Examples

Sound system installed for The Law Society
