QSC AD-P.HALO Integrated SUB/SAT Pendant Loudspeaker System

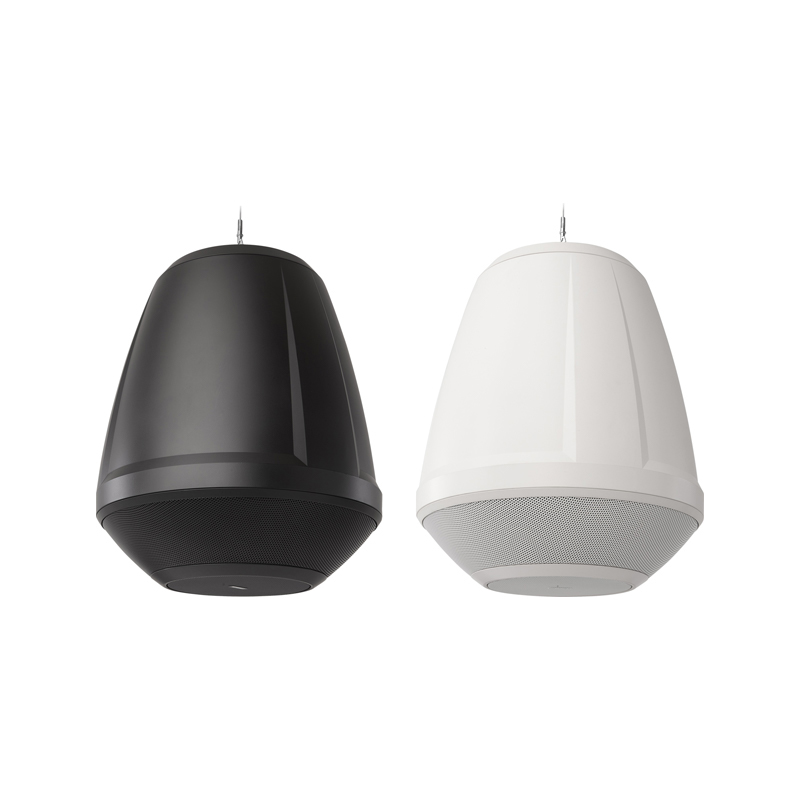

The QSC AD-P.HALO is a purpose-built, integrated SUB/SAT pendant loudspeaker system, featuring an integrated 6.5″ subwoofer and four 2.75″ satellite transducers in a single enclosure that is ready to install out of the box. Designed for business music installations where music drives the atmosphere, it features a 200 W RMS power rating with significant dynamic headroom that far surpasses the performance of traditional two-way, pendant-mount loudspeakers.

Features & Benefits

  • All-in-one solution, no assembly required: The AD-P.HALO is purpose-designed and fully integrated in a single-enclosure pendant that is ready to hang right out of the box. This hassle-free design simplifies and expedites the installation process, lowering the overall project costs and allowing the integrator to focus on the sound.

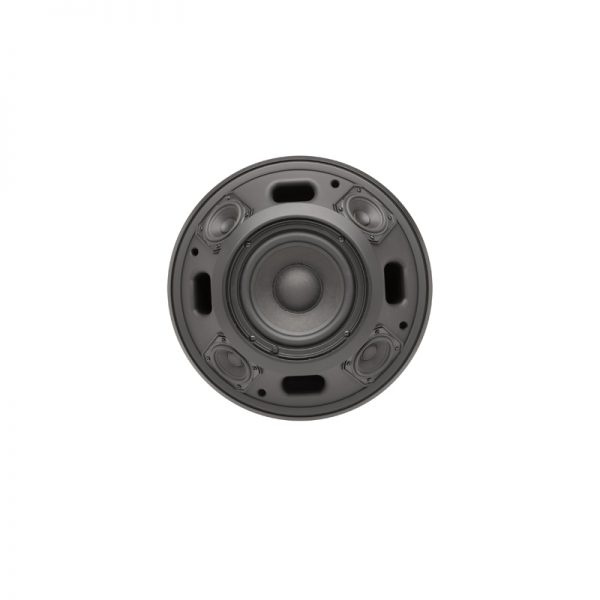

  • Designed for performance and musicality: Featuring a 6.5″ subwoofer and four 2.75″ transducers in a single, pendant-mount enclosure, the AD-P.HALO brings high-performance and musicality to high-end retail and hospitality applications where sound drives the atmosphere. The 200 W RMS power rating provides significant dynamic headroom that far surpasses the background music performance of traditional two-way pendant-mount loudspeakers.
  • Perfect AcousticDesign™ Series companion:  The AD-P.HALO joins the AcousticDesign Series portfolio of loudspeakers, which offer sleek aesthetic design and high-quality sound across multiple form factors (ceiling-mount, pendant-mount and surface-mount).
Categories: ,

Description

System Details AD-P.HALO
Systems type Integrated SUB/SAT
LF Transducer 6.5 in (165.1 mm)
HF Transducer 4x 2.75 in (69.85 mm)
Frequency range 40 Hz – 20 kHz
Sensitivity 86 dB
Rated noise power 100 W
Max noise voltage 24.5 V RMS
Coverage 110° conical
Directivity index 8 dB
Directivity Factor 6
Maximum SPL (continuous/peak) 105 / 111 dB
Nominal impedance 6 Ω
Crossover frequency 250 Hz (2nd order low-pass + 3rd order high-pass filters)
Transformer Taps 70 V : 12.5, 25, 50, 100

100 V : 25, 50, 100
Port Tuning 50 Hz
Input connectors 4-pin male/female Euroblock with pass-thru and locking screws
Enclosure material Injection-molded ABS baffle and enclosure
Grille material Stamped steel, perforated and powder-coated
Product dimensions Diameter: 339.8 (mm) (13.37 in)
Height: 433 (mm) (17.04 in)
Shipping Dimensions (W x D x H) 535 x 445 x 435 (mm)
(21.06 x 17.52 x 17.13 in)
Net weight 10.2 lb (22.5 kg)
Shipping Weight 12.5 lb (27.6 kg)
