Description
WP−SW2−EN7 是一款先進的壁板編碼器，用於透過銅纜乙太網路傳輸 4K 視訊訊號。
特點
- 視頻流發射器 — 通過 1G 網絡接口傳輸最高 4K@60Hz (4:2:0) 分辨率的信號。
- 流媒體支持 — 支持單播和多播。
- 多輸入選項— 提供一個 HDMI 輸入和一個 USB-C 輸入，支持多種切換策略，包括最後連接優先、優先級和手動切換。
- 模擬音頻嵌入— 將非平衡模擬音頻嵌入到串流和 HDMI 輸出信號中。
- 便捷且全面的控制 —通過直觀的網頁界面、以太網上的 Protocol 3000 API 命令或前面板的 LCD 和導航按鈕控制設備。
- 控制網關 — 通過 P3K 或特殊的 TCP 連接，實現與 RS232 和 CEC 相連設備的控制/通信。
- PoE 支持 — 可選擇通過 PoE 交換機提供的 PoE 連接供電。
應用場景
- 適用於需要實時關鍵操作的安裝，例如指揮與控制室
- 適用於使用現有線纜和基礎設施的大規模視聽內容共享安裝，例如企業辦公室和政府應用
- 適用於學校、大學和公共場所中具有一個或多個信號源和多個顯示器的視聽分配系統
- 適用於需要低延遲 KM/KVM 功能的視聽安裝
Description
WP−SW2−EN7 is an advanced wall plate encoder for streaming 4K video signals via Ethernet over copper cable.
Features
- Video Streaming Transmitter — Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface.
- Streaming Support — Unicast and multicast.
- Multiple Inputs — One HDMI input and one USB–C input, which support multiple switching policy including Last connected, Priority and Manually.
- Analog Audio Embedding — Embed the unbalanced analog audio into the streaming and HDMI output signal.
- Convenient and Comprehensive Control — Control the unit using intuitive embedded web pages, Protocol 3000 API commands via Ethernet or front panel LCD and navigation buttons.
- Control Gateway — Through P3K or special TCP connection, user can control/communicate with RS232, CEC to the connected devices.
- PoE Support — Option to power with PoE connection from a PoE switch
Applications
- For real–time essential installations such as command and control rooms
- For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications
- AV distribution systems with one or more sources and many displays in schools, universities, and public venues
- For AV installations where low latency KM/KVM capabilities are required

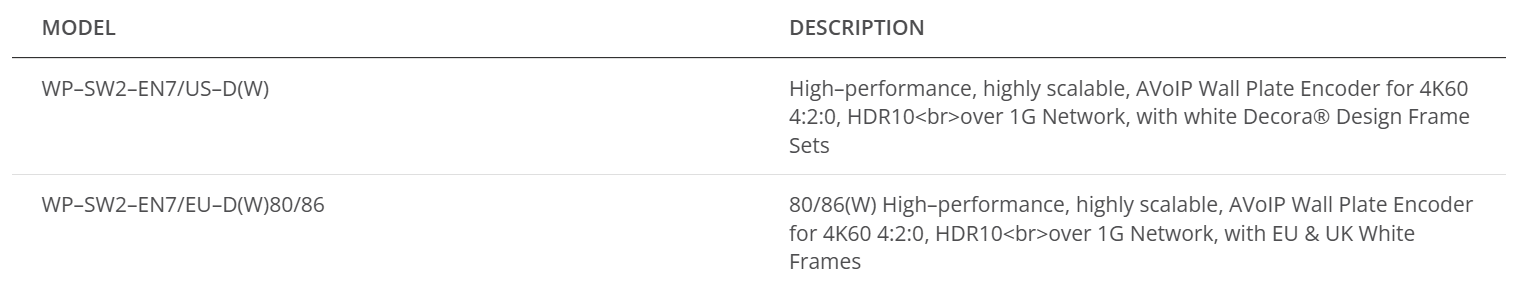

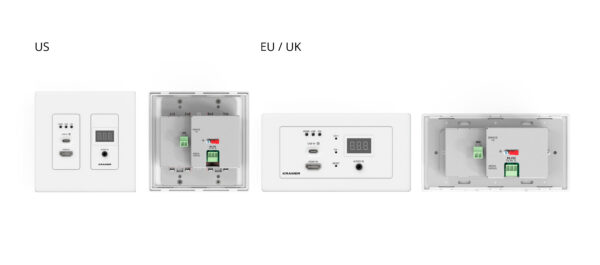

Configurations

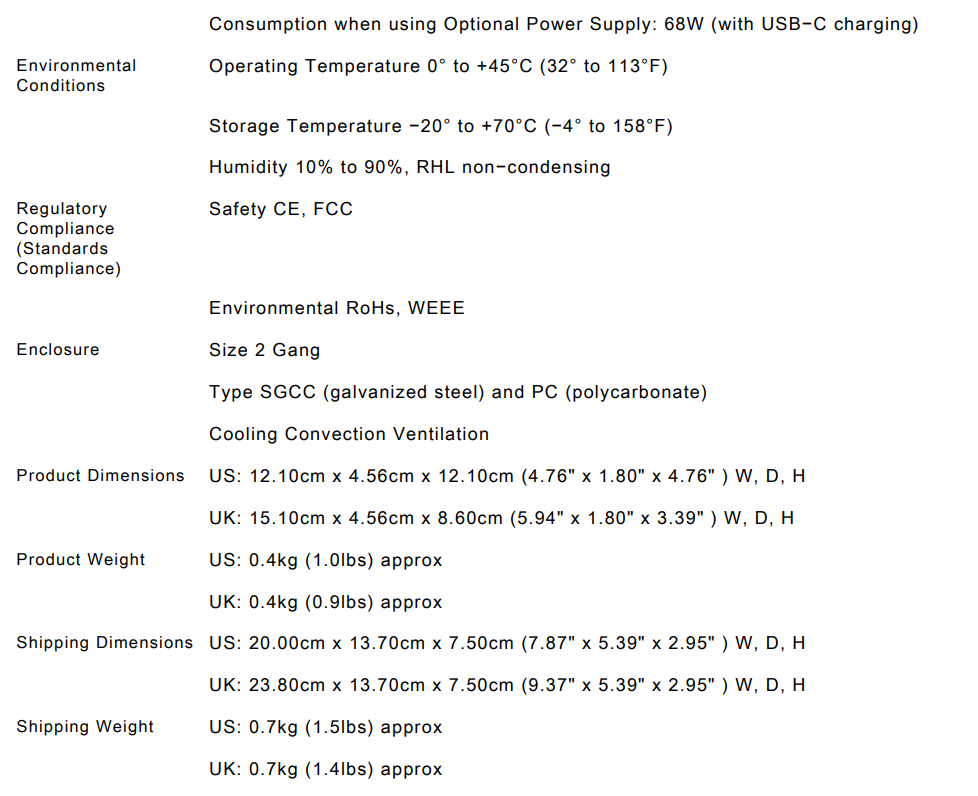

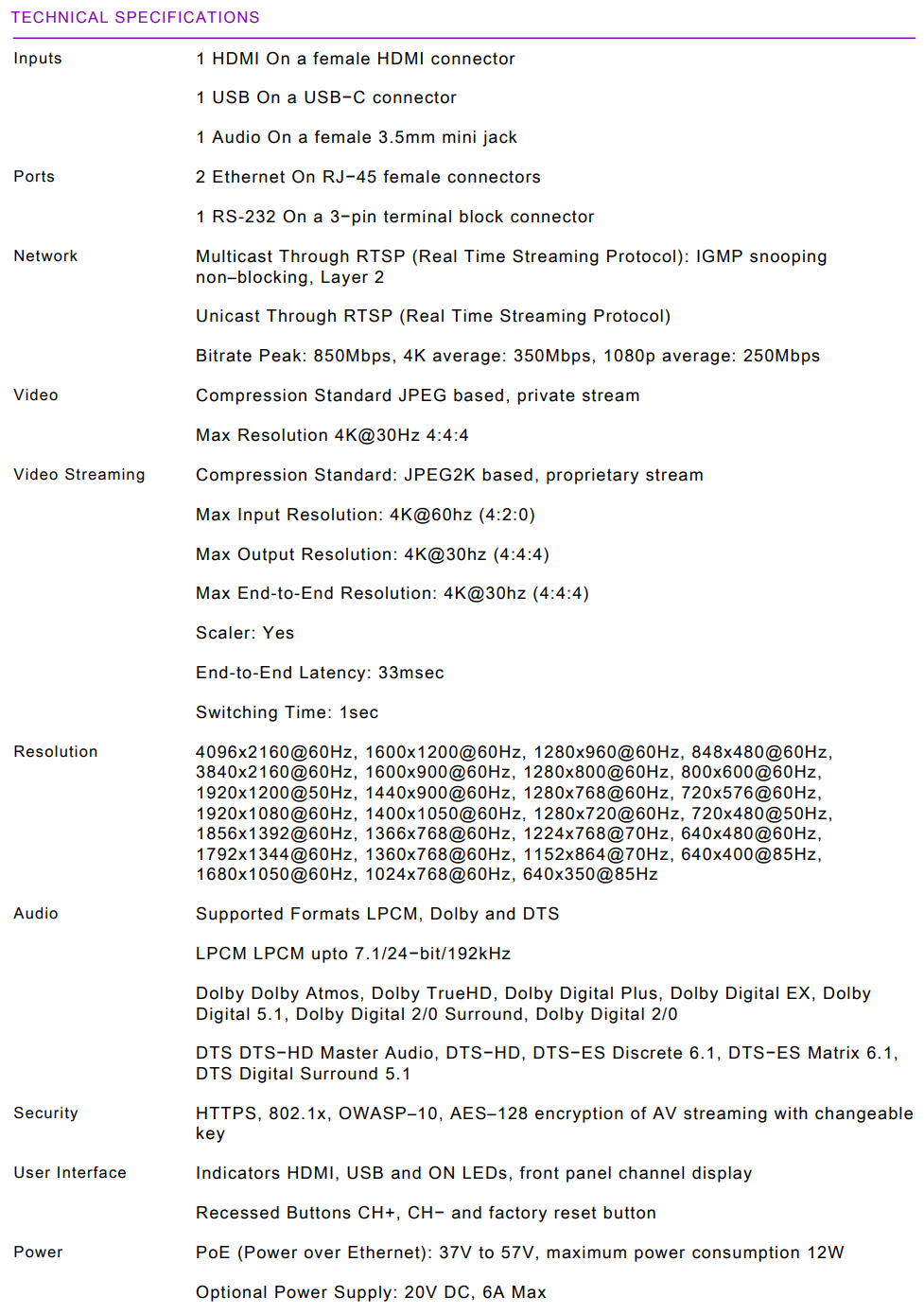

Technical Specifications
