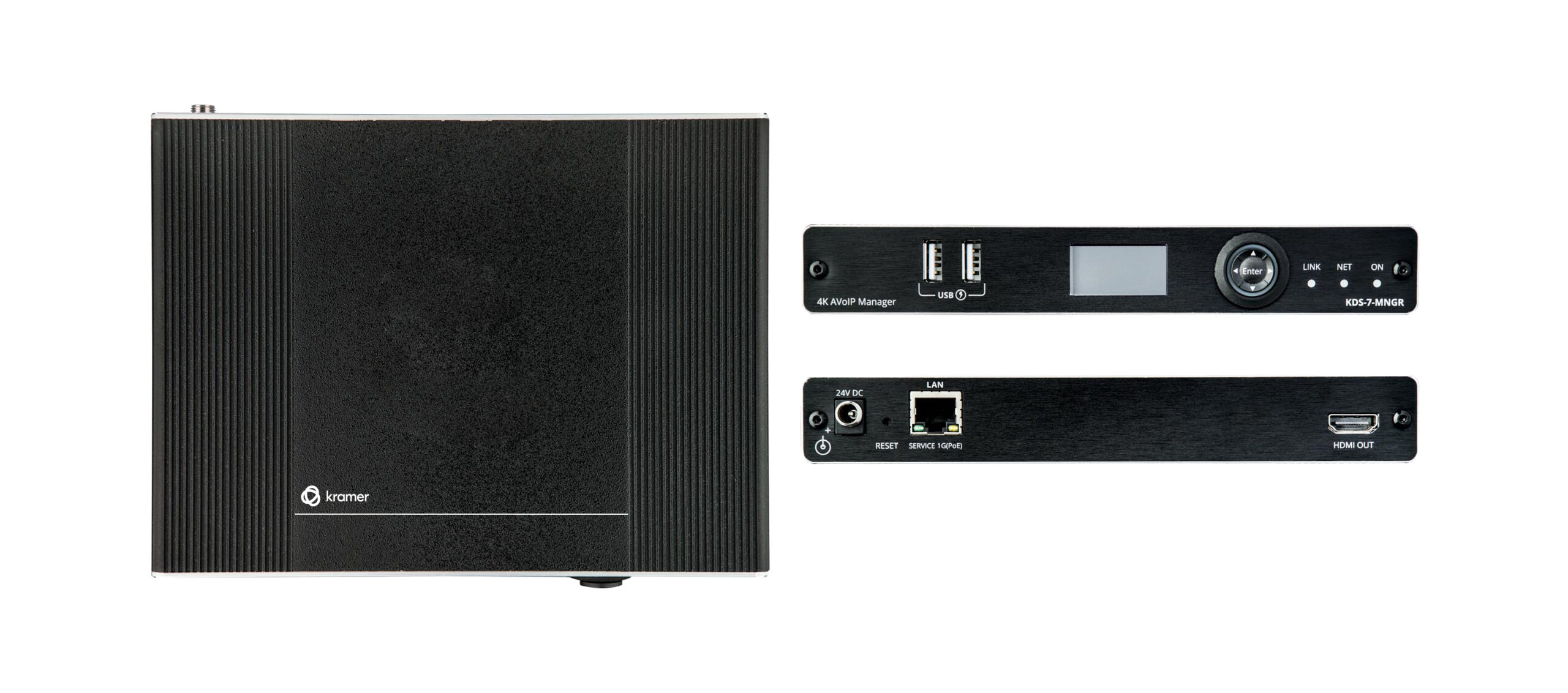

Kramer KDS-7-MNGR

Description

KDS−7−MNGR 管理器是用於配置和管理同一網絡中 KDS−7 部署的解決方案。只需將該設備安裝到與擴展器（編碼器和解碼器）相同的本地網絡中，即可輕鬆通過內嵌的網頁界面定義和配置頻道路由選擇（包括視頻、音頻以及各種控制界面類型）。

此外，此設備還支持控制和配置已連接的 KDS−7 設備的矩陣、視頻牆和 KVM 模式，以及設備分組和組操作。

所有已連接編碼器/解碼器單元的設置，包括 IP 配置、兼容性設置和擴展器狀態，都會清晰顯示並可以輕鬆更新。

特點

出色的終端用戶體驗 —
- - 即時自動發現和狀態檢視，帶有預覽功能。
  - 可通過遠程 Web 界面或本地監視器配合 USB 鍵盤和滑鼠進行訪問。
適用於多設備部署 —
- - 管理多達 120 個編碼器和解碼器。
  - 配置虛擬視頻矩陣、KVM 和視頻牆。
  - 配置設備分組、預設定義以及通過用戶界面或 API 激活。
  - 為單個或多個設備進行固件配置。
強大的安全性 —
- - 企業 IT 級安全性 — 支持 802.1x 和 HTTPS/TLS。
- - 安全認證 — 通過 OWASP Top 10 安全證書。
- - 可部署在用於 AV 數據流的相同局域網中或單獨的局域網中。
簡單的規劃與部署 —
- - 從第一天起便具成本效益
- - 全面的產品系列適用於任何場地或應用場景。
- - 即插即用，兼容 Netgear M4250 AVoIP 交換機、Kramer Control、KDS–USB2 等设备。

應用場景

適用於需要實時關鍵操作的安裝，例如指揮與控制室
適用於使用現有線纜和基礎設施的大規模視聽內容共享安裝，例如企業辦公室和政府應用
適用於學校、大學和公共場所中具有一個或多個信號源和多個顯示器的視聽分配系統
適用於需要低延遲 KM/KVM 功能的視聽安裝

>>> View More 點擊瞭解詳情

Description

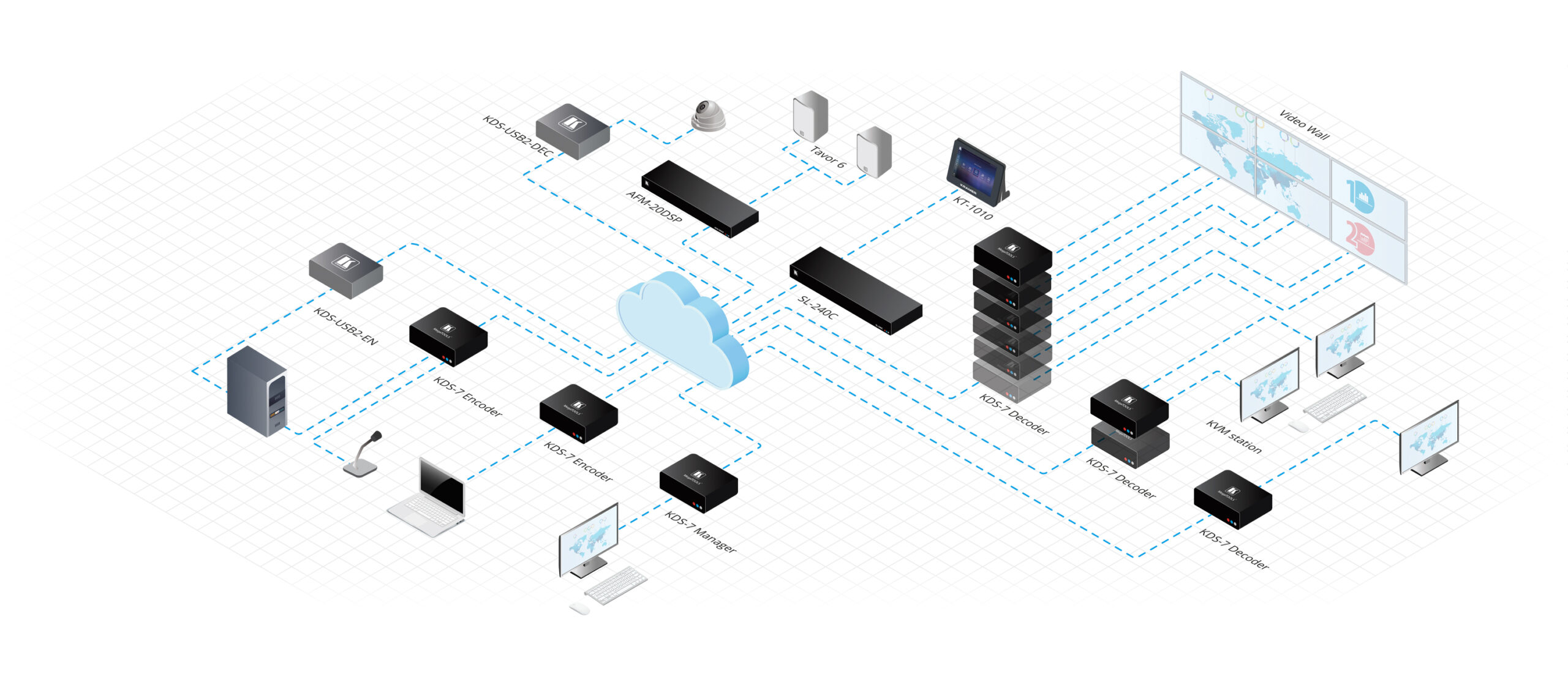

KDS−7−MNGR Manager is the solution for configuration and management of KDS−7 deployments within the same network. Simply install the unit into the same local network as the extenders (encoders and decoders) to easily define and configure channel routing selections (including video, audio, and a variety of control interface types) using the embedded web pages.

Additionally, this unit supports controlling and configuring the matrix, video wall, and KVM modes of connected KDS−7 devices as well as device grouping and group operations.

The settings of all connected encoder/decoder units, including IP configuration, compatibility settings, and extender status are clearly displayed and easily updated.

Features

Outstanding end–user experience —
- - Instant auto–discovery and status with preview

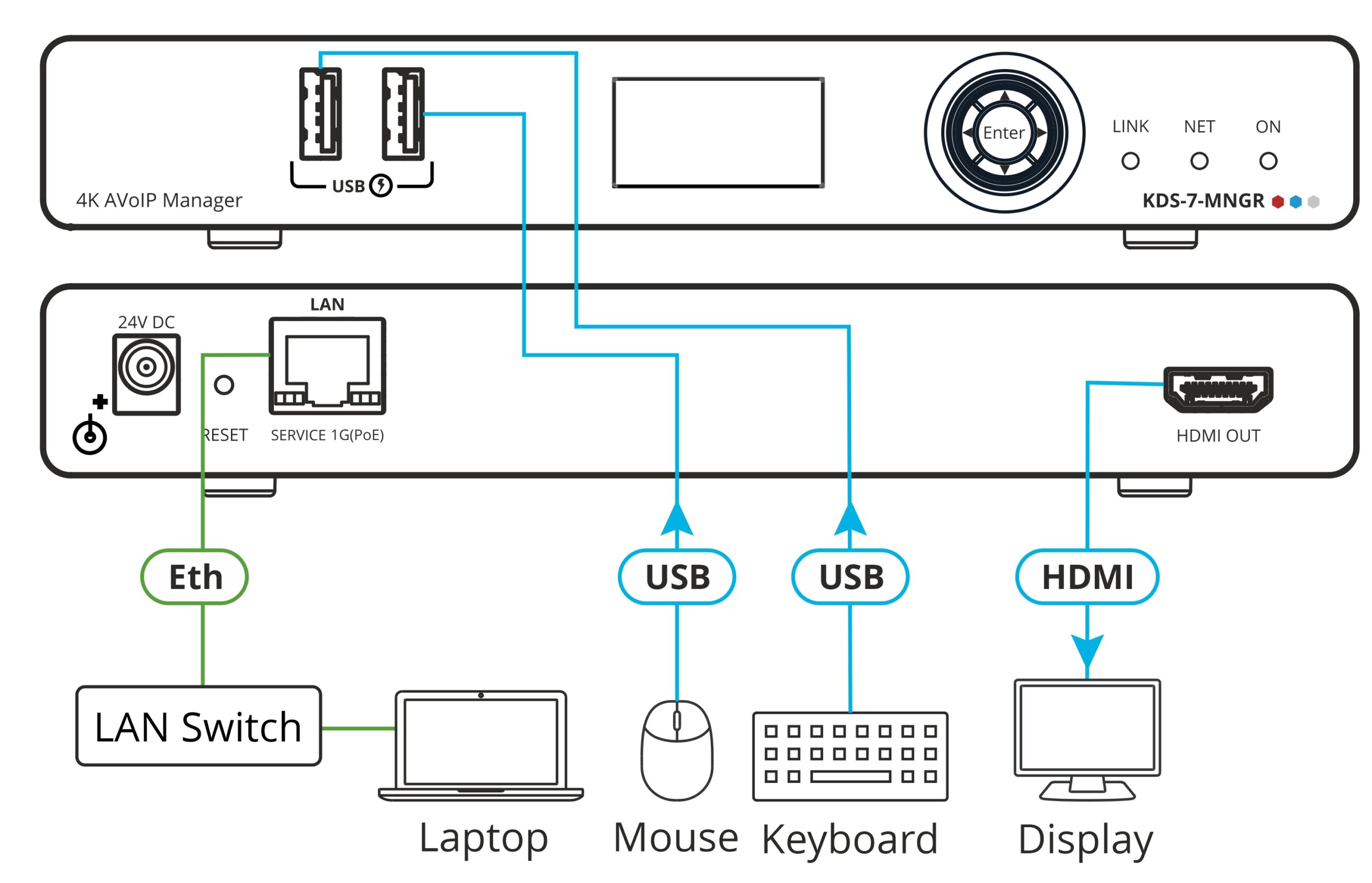

  - Access via Remote Web UI or using local monitor with a USB keyboard and mouse
Ideal for multiple device deployments —
- - Manages 120 encoders and decoders
  - Configuration of Virtual Video Matrix, KVM, and Video Walls
  - Configuration of Device Grouping, Preset Definition, and Activation via UI or APIs
  - Configuration — FW for single or group of devices
Robust security —
- - Enterprise IT–grade security — 802.1x and HTTPS/TLS
- - Security certification — OWASP Top 10 certificate
  - Can be deployed in the same LAN used for AV data streaming or in a separate LAN
Simple planning and rollout: —
- - Cost–effective from day one
- - Full product range for any site, any application
- - Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, KDS–USB2, etc.

Applications

For real–time essential installations such as command and control rooms
For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications
AV distribution systems with one or more sources and many displays in schools, universities, and public venues
For AV installations where low latency KM/KVM capabilities are required
