Crown CDi 4|300 Professional Power Amplifiers

  • 高效率的設計，可節省能源和運行成本
  • 雙設計，可在2歐姆或4歐姆音箱上使用
  • 擁有高性能的DSP核心，可提供精確的設置和控制
  • 支援多種音訊格式，包括Analog、AES / EBU、TOSLINK和USB
  • 可通過Ethernet網絡設置和監控
  • 可通過System Architect軟件進行控制和管理
  • 具有強大的保護功能，包括過熱保護、短路保護和限流保護
  • 可靠的Crown品質，適用於各種音頻應用，包括商務、教育、表演和錄音室等場合。



  • High-efficiency design that can save energy and operating costs
  • Dual design, can be used with 2-ohm or 4-ohm speakers
  • Equipped with a high-performance DSP core, which can provide precise settings and control
  • Supports multiple audio formats, including Analog, AES/EBU, TOSLINK, and USB
  • Can be set up and monitored through Ethernet network
  • Can be controlled and managed through System Architect software
  • Equipped with powerful protection functions, including overheating protection, short-circuit protection, and current limiting protection
  • Reliable Crown quality, suitable for various audio applications, including business, education, performance, and recording studio, etc.
Categories: ,

Description

Crown CDi 4|300 專業功率放大器

CDi DriveCore 系列掀起了功放的革命性創新，呈現了令人刮目的高性能、豐富功能以及成本優勢的完美組合。CDi DriveCore 採用哈曼旗艦固定安裝功放（Crown DriveCore Install 系列）技術，簡化了功能，幾乎適用於任何中小型固定安裝、電影院、零售店等應用場合。CDi DriveCore 系列設計旨在各種應用場景中運用自如，擁有2 或4 通道配置，以及網絡控制/監控、高電平DSP、前面板界面等，且無需外接變壓器也能驅動高達100Vrms 定壓模式的揚聲器。此外，使用BLU link（BL 模式）還可改變通道數/輸出功率，實現了通過哈曼數字音頻總線收發通道的功能。

DriveCore 技術

Crown 的 DriveCore 專有技術的高效設計減少了每個功放的組件數量（高達數百個），降低了組件值的差異性，提高了可靠性，從而呈現難以置信的音頻保真度。

網絡控制與監控

安裝哈曼的 HiQnet Audio Architect 軟件，即可通過標準的 TCP/IQ 網絡對 CDi DriveCore 进行控制、配置與監控。

DSP

每個功放的板載數字信號處理器均支持自定義配置

  • 輸入路由器
  • 輸入延遲 – 高達 1000ms
  • 輸入參量均衡 – 8 個頻段
  • 分頻器
  • 輸出參量均衡 – 8 個頻段
  • 輸出延遲 – 高達 100ms
  • LevelMAX™ 限制器
BLU link（僅限 BL 模式）

通過哈曼的 256 通道、容錯音頻總線、BLU link 收發通道

直接驅動 70/100Vrms 定壓輸出

每個通道均支持 70V 定壓模式或 100V 定壓模式的高阻抗應用。

前面板界面

使用直觀的前面板界面即可對功放進行全面配置。

GPIO/AUX 端口

通過 GPIO/AUX 組合端口可調用預設、使通道靜音、監控故障、打開/關閉功放等。

按此查看更多資訊

CDi 4|300

相關工作案例

香港律師會安裝音響系統

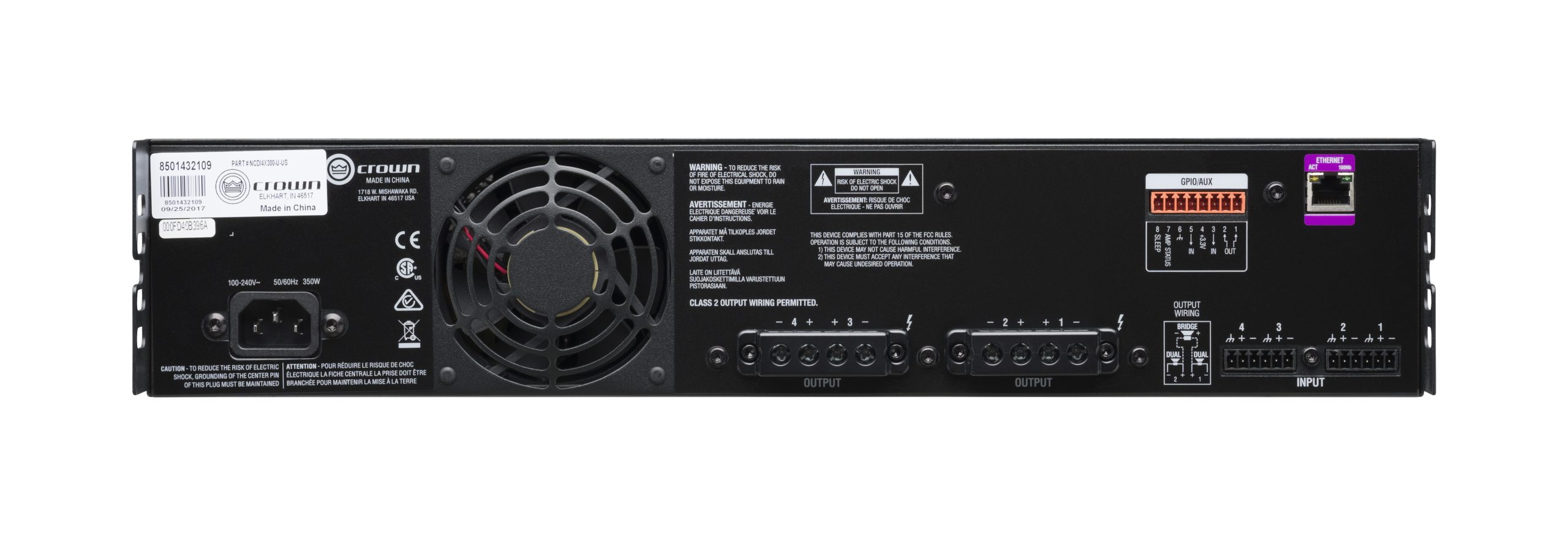

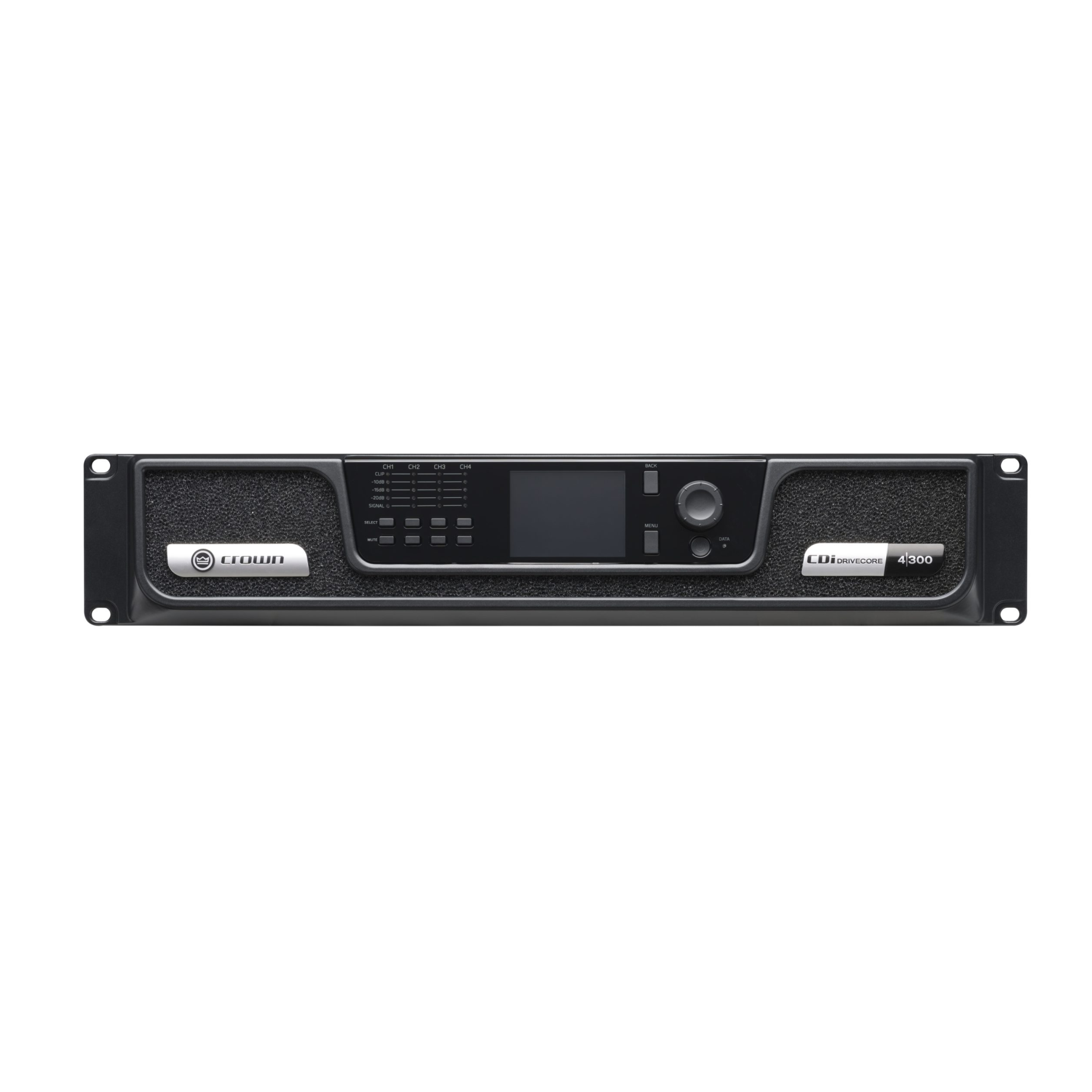

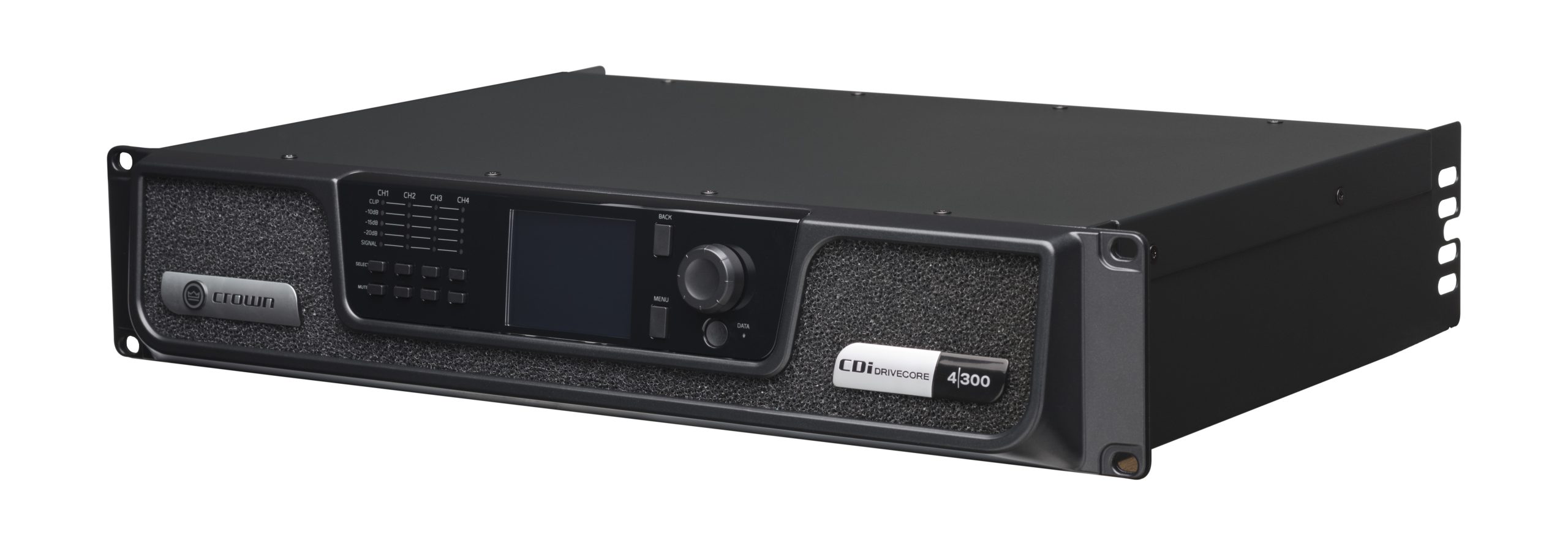

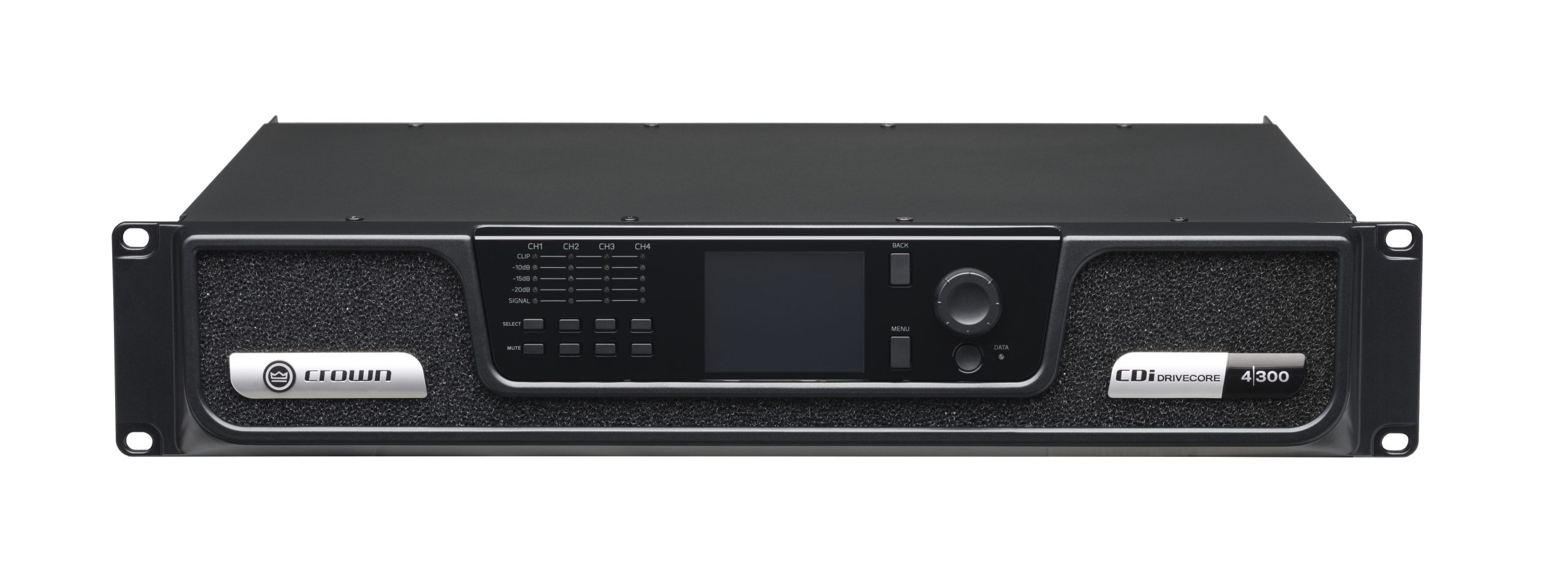

Crown CDi 4|300 Professional Power Amplifiers

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|300 offers streamlined functionality to work in almost any small/medium sized installation such as restaurants, retail stores, and more. Designed for ease-of-use in a variety of applications, the 4|300 is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.

DriveCore Technology

Crown’s proprietary DriveCore technology eliminates hundreds of components within each amplifier, reducing the variability of component values, increasing reliability, resulting in incredible audio fidelity from an efficient design.

Network Control and Monitoring

Through Harman’s HiQnet Audio Architect software, the CDi DriveCore can be controlled, configured, and monitored through standard TCP/IQ network.

DSP

On-board Digital Signal Processor in each amplifier allows for custom configuration

  • Input Router
  • Input Delay – Up to 1000ms
  • Input Parametric EQ – 8 band
  • Crossover
  • Output Parametric EQ – 8 band
  • Output Delay – Up to 100ms
  • LevelMAX™ Limiter
BLU link (BL models only)

Both receive and send channels over HARMAN’s 256 channel, fault-tolerant audio BUS, BLU link

Direct Drive 70/100Vrms Output

Each output channel is capable of provide either 70V or 100V for high impedance applications.

Front-Panel Interface

Completely configure the amplifier using an intuitive front-panel interface.

GPIO/AUX Port

Recall presets, mute channels, monitor faults, power on/off the amplifier, and more through a combined GPIO/AUX Port.

Click here for more information

CDi 4|300

Relevant Job Examples

Sound system installed for The Law Society
