Description

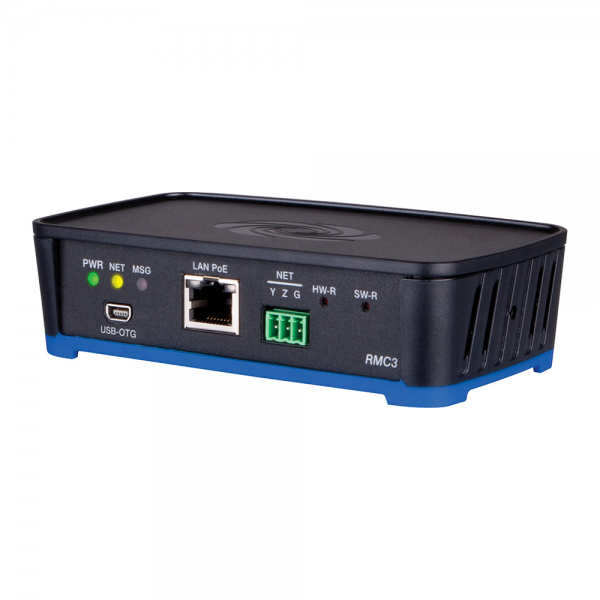

The Crestron® RMC3 is a compact and cost-effective 3-Series Control System® designed to provide control and monitoring for a single display device, a small AV system, lighting and shading, climate control, security, energy management, and many other specialized applications. Its tiny form factor allows it to be placed just about anywhere with the option to attach it to a flat surface or DIN rail using the mounting bracket provided. It can fit easily behind a video display or above a projector, and provides enough control ports to control the display device along with a screen or lift. Cresnet® and Ethernet connectivity provides full support for the full line of Crestron touch screens, keypads, dimmers, shades, thermostats, and other peripherals. Featuring the 3-Series® control engine, the RMC3 provides a robust, feature-packed controller that’s ideal for mass deployment across college campuses, corporate office buildings, museums, MDUs, hotels, and convention centers.
Key Features
Compact and cost-effective control system
- 3-Series® Control Engine
- Modular programming architecture (optional [1])
- Onboard 256MB RAM & 4GB Flash memory
- Support for external USB flash memory and mass storage devices
- Industry-standard Ethernet and Cresnet® wired communications
- XPanel with Smart Graphics™ computer and web based control
- iPhone®, iPad®, and Android™ control app support
- Crestron Fusion® Cloud Enterprise Management Service support
- SNMP remote management support
- One RS-232/422/485 COM port with hardware and software handshaking
- Two IR/serial, two relay, and two digital input ports
- Programmable event scheduling with astronomical time clock
- Native BACnet™/IP support [3]
- Installer setup via Crestron Toolbox™ software or web browser
- C#, symbol based, and drag-and-drop programming environments
- Full Unicode (multi-language) support
- Increased network throughput and security
- Secure access through full user/group management or Active Directory integration
- Hardware level security using 802.1X authentication
- TLS, SSL, SSH, and SFTP network security protocols
- FIPS 140-2 compliant encryption
- Built-in web server
- IPv6 ready
- USB On-The-Go port
- PoE network powered
- Compact, stackable “IFE micro” form factor
- Surface or DIN rail mountable
- Available rack mount and pole mount options [4]
