Crestron PRO3

3-Series Control System®

The flagship 3-Series® control processor, offering immense power, expanded memory, an enhanced color LCD front panel, numerous integrated control ports and three control card expansion slots. Features an isolated control subnet providing a Gigabit Ethernet LAN dedicated for Crestron devices.

Categories: , Tag:

Description

The flagship Crestron® PRO3 is an enterprise-class control system with an enhanced feature set including a front panel color LCD display, built-in control card expansion slots, and a dedicated Control Subnet port. Featuring the 3-Series® control engine, the PRO3 forms the core of any modern networked home or commercial building, managing and integrating all the disparate technologies throughout your facility to make life easier, greener, more productive, and more enjoyable.

Key Features
  • Enterprise-class control system
  • 3-Series® Control Engine — substantially faster and more powerful than other control systems
  • Exclusive modular programming architecture
  • Onboard 1GB RAM & 4GB Flash memory
  • Expandable storage up to 1TB
  • Rear panel memory card slot
  • High-speed USB 2.0 host port
  • Industry-standard Ethernet and Cresnet® wired communications
  • Control Subnet — provides a dedicated local network for Crestron® devices
  • XPanel with Smart Graphics™ computer and web based control
  • iPhone®, iPad®, and Android™ control app support
  • Crestron Fusion® Cloud Enterprise Management Service support
  • SNMP remote management support
  • Two RS-232/422/485 COM ports with hardware and software handshaking
  • Four RS-232 COM ports with software handshaking only
  • Eight IR/serial, eight relay, and eight Versiport I/O ports
  • Three built-in 3-Series control card expansion slots
  • Programmable event scheduling with astronomical time clock
  • Native BACnet™/IP support [2]
  • IEC 61000-4-5 Installation Class 4 surge immunity on COM, Versiport, and network connections [3]
  • Installer setup via front panel, Crestron Toolbox™ software, or web browser
  • C#, symbol based, and drag-and-drop programming environments
  • Full Unicode (multi-language) support
  • Increased network throughput and security
  • Secure access through full user/group management or Active Directory integration
  • Hardware level security using 802.1X authentication
  • TLS, SSL, SSH, and SFTP network security protocols
  • FIPS 140-2 compliant encryption
  • IIS v.6.0 Web Server
  • IPv6 ready

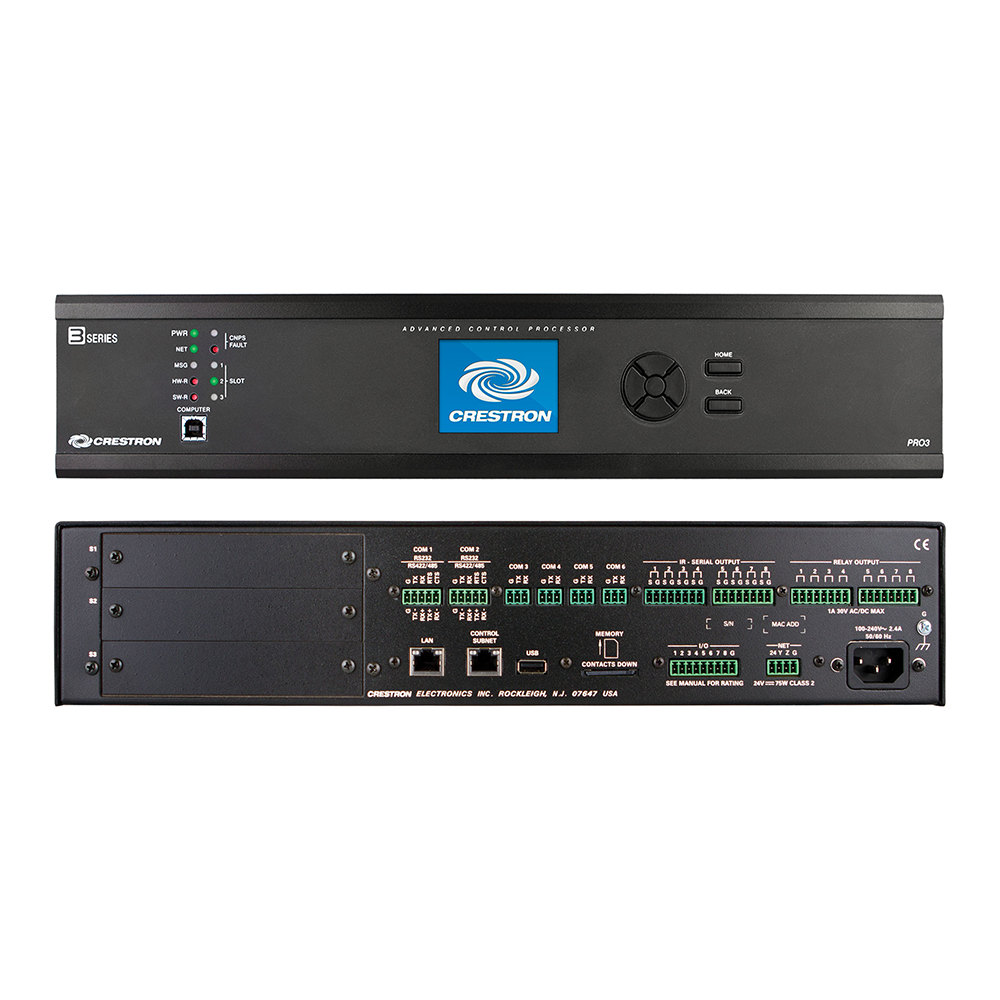

  • Front panel color LCD display for setup and diagnostics
  • Front panel USB computer console port
  • 2-space rack-mountable
