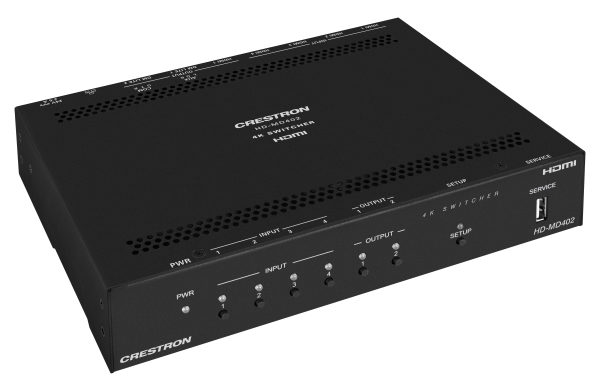

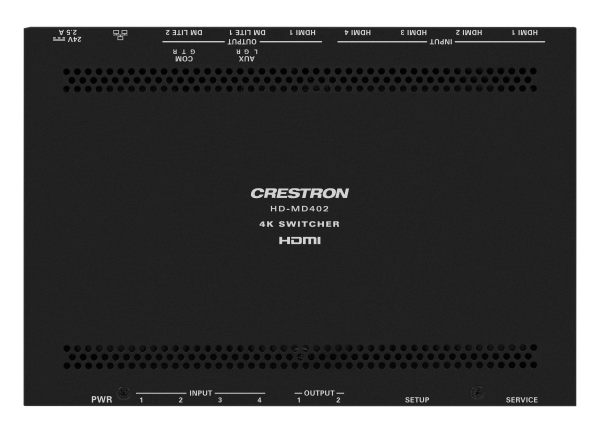

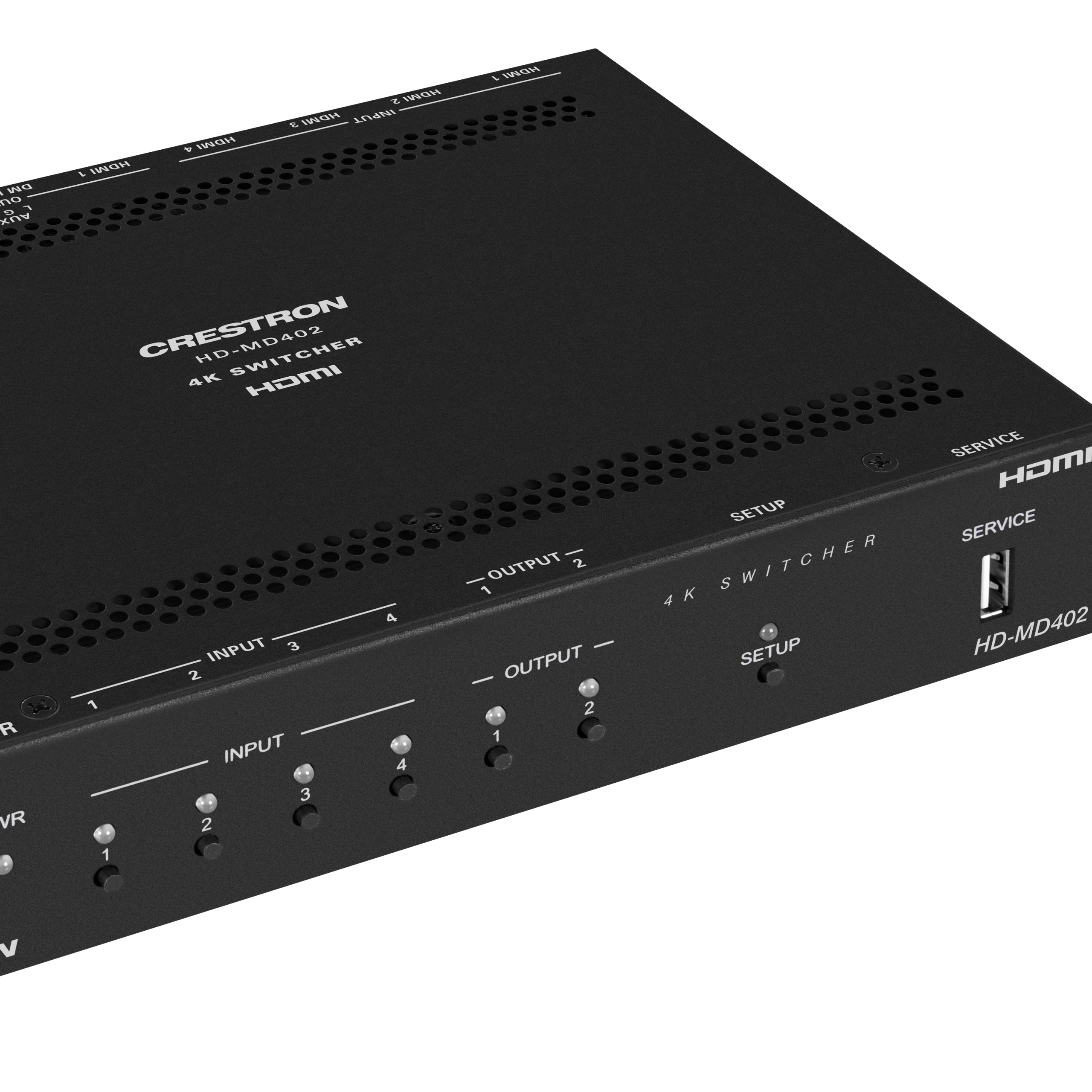

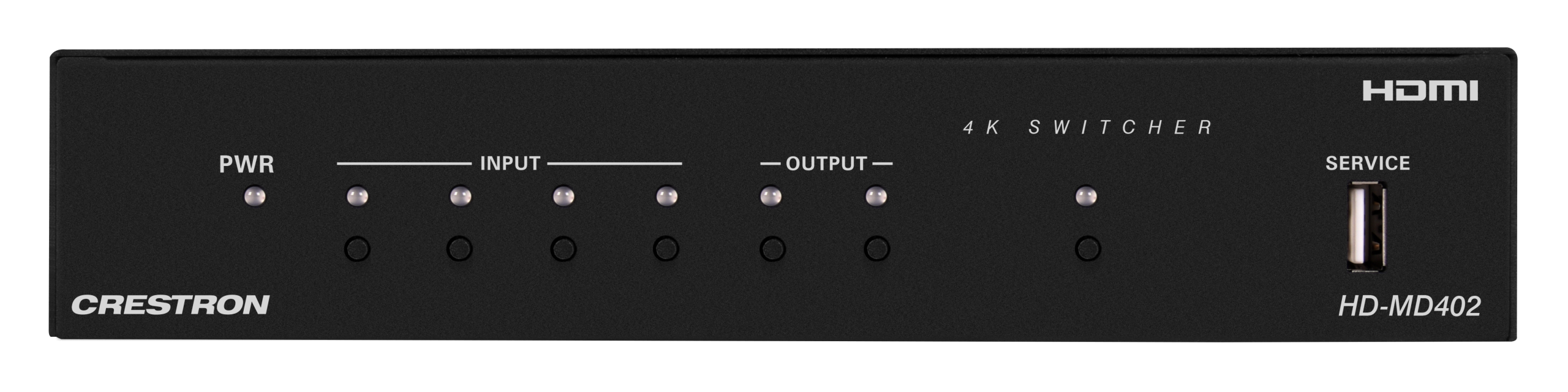

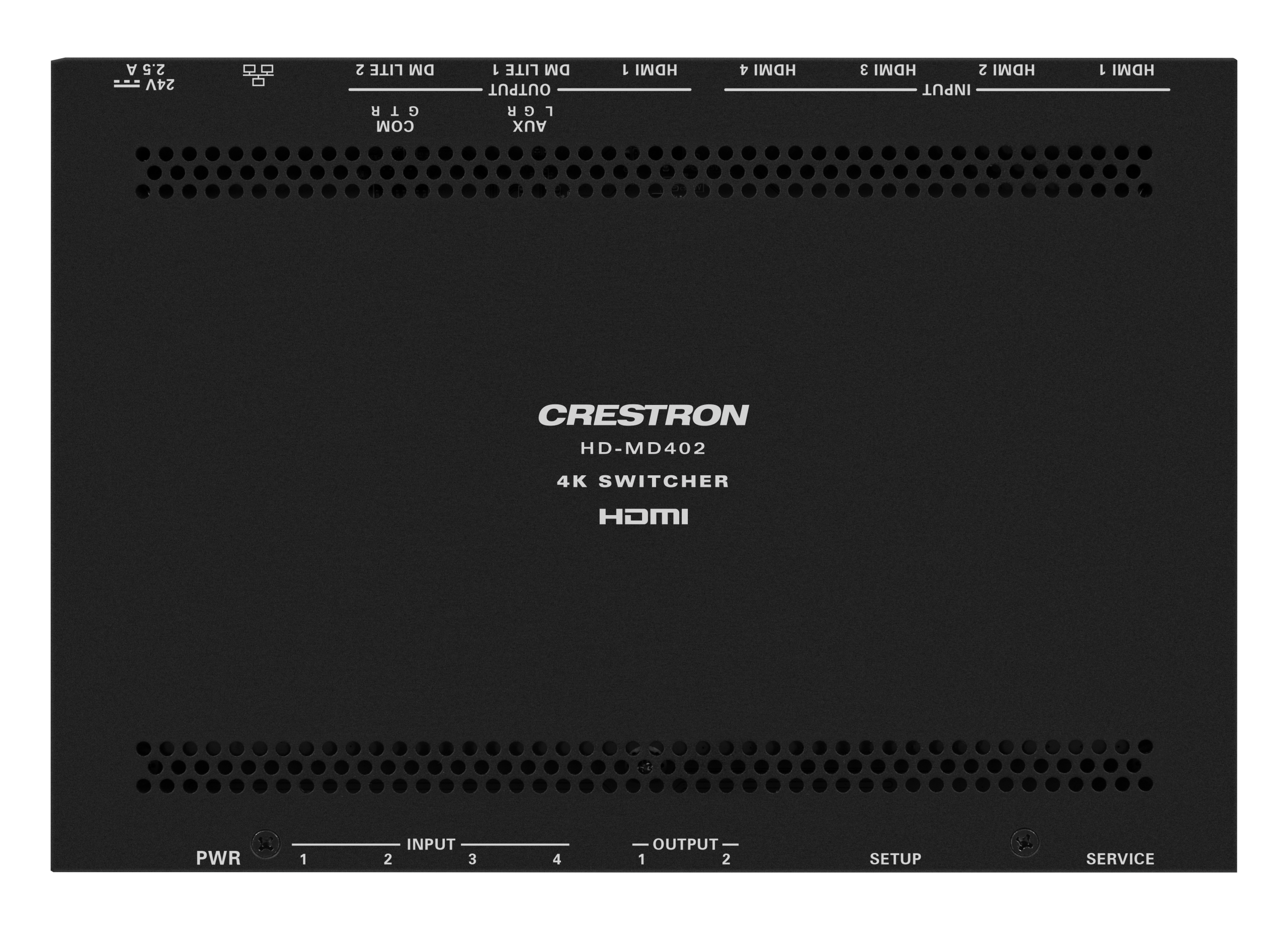

Crestron HD-MD402

4×2 4K60 4:2:0 AV Switcher

A high-performance 4K60 4:2:0 AV switcher. Includes four HDMI® inputs, one mirrored HDMI and DM Lite® output, and one independent DM Lite output. Supports advanced EDID management and native Crestron® control via Ethernet.
Categories: , Tag:

Description

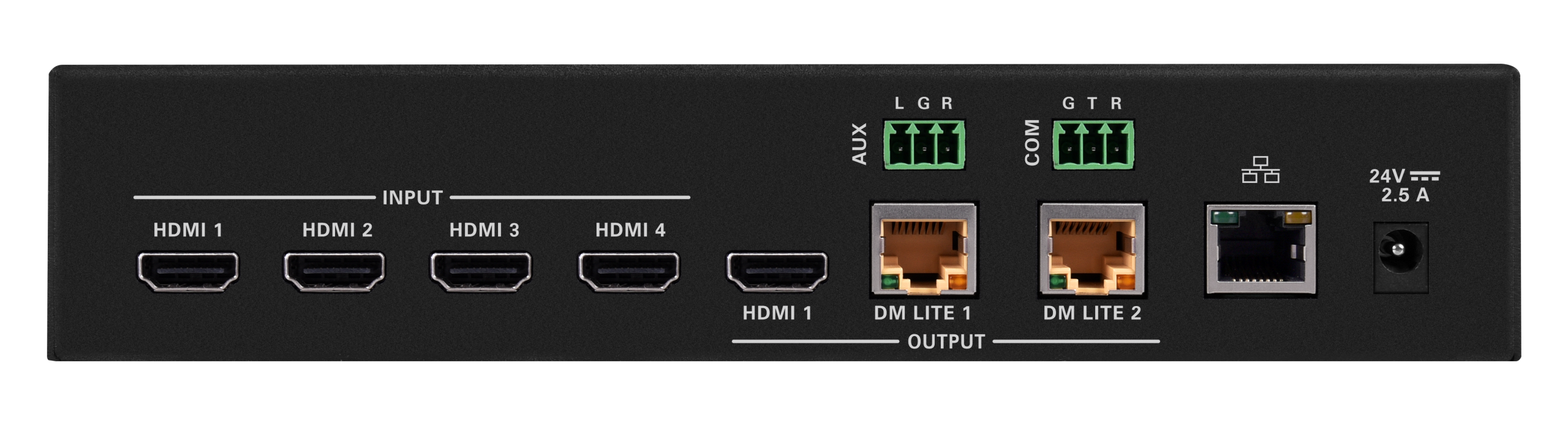

The HD-MD402 is a 4K60 4:2:0 AV switcher that provides a cost-effective solution for professional AV applications. The HD-MD402 provides four HDMI® inputs, one mirrored HDMI and DM Lite® output, and one independent DM Lite output. The DM Lite outputs extend HDMI signals over a CATx (CAT5e or higher) twisted pair cable. For HD 1080p, WUXGA, and 2K signals, a CATx cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a CATx cable length of up to 130 ft (40 m) is supported.1

4K to 1080p Downscaling
The mirrored HDMI and DM Lite output and the independent DM Lite output each have a built-in scaler for downscaling 4K to 1080p signals. Input resolutions are automatically downscaled to 1080p regardless of the resolution capabilities of the display device. If desired, downscaling can be disabled. Input resolutions up to 4K60 4:2:0 are supported.

HDMI Audio De-embedding
Embedded HDMI 2-channel LPCM audio can be extracted from the selected HDMI input and transmitted to the AUX stereo audio output. Mute control is configurable for the mirrored HDMI and DM Lite output, the independent DM Lite output, and the AUX audio output independently. Volume control is only configurable for the AUX audio output.

USB Power Port
A USB power port is included on the HD-MD402 to power USB powered devices (500mA maximum).

NOTE: No USB data is passed through the USB power port. The port cannot be used to extend USB data, video, or audio signals.

Automatic Display Power
The COM (RS-232) port can enable the display device to be turned on or off automatically without the use of a control system. The port also enables full programmable control of any device with the use of a control system. An Ethernet port connection to a LAN also provides control by enabling use of the built-in web interface as well as connection to a control system. For more information, see Online Help Answer ID 1000921.

Built-In Web Interface
Configuration of the HD-MD402 can be accomplished by using the built-in web interface. The configuration of a single unit can be downloaded to a computer or mobile device and then uploaded to multiple HD-MD402 units to simplify system installation.

.AV Framework™ Technology Support (Coming Soon)
In addition to a built-in web interface and control system programming, built-in .AV Framework technology of a Crestron control system can be used to configure and control the HD‑MD402. For information about .AV Framework technology and the supported Crestron control systems, visit www.crestron.com/avframework.

Surface-Mountable Design
The HD-MD402 can be installed using the included mounting hardware. The device can be mounted onto a wall or other flat surface.

Key Features
  • 4K60 4:2:0 digital AV switcher
  • Four HDMI® inputs
  • One mirrored HDMI and DM Lite® output and one independent DM Lite output
  • 4K to 1080p downscaling
  • EDID management
  • HDCP 2.2 compliance
  • HDMI audio de-embedding
  • 100BASE-TX Ethernet connectivity
  • USB power port
  • Device control
  • Built-in web interface for easy configuration and monitoring
  • Compatibility with Crestron® 3-Series® or later control systems
  • .AV Framework™ technology support (coming soon)
  • Surface-mountable design
  • Universal 100-240VAC power pack included
  1. For DM Lite connections, use Crestron DM‑CBL‑8G, Crestron DM‑CBL‑ULTRA, or third-party CAT5e or higher cable. To safeguard against unpredictable environmental electrical noise that may impact performance at resolutions above 1080p, shielded cable and connectors are recommended for all applications and are required when bundling multiple cables in a wire run. Wire and cables sold separately. DM Lite ports are not compatible with DigitalMedia 8G+®, HDBaseT®, PoE, or PoDM technology or any other type of CATx based interface or network.
  2. The HDMI input requires an appropriate adapter or interface cable to accommodate a DVI or Dual-Mode DisplayPort signal. CBL-HDI-DVI interface cables are available separately.
  3. The HDMI output requires an appropriate adapter or interface cable to accommodate a DVI signal. CBL-HDI-DVI interface cables are available separately.
  4. Only the HD-RX-101-C-E, HD-RXC-101-C-E, HD-RX-101-C-1G-E, and HD-RXC-101-C-1G-E DM Lite receivers are supported.When connected to the DM Lite output ports, the following devices support extension of audio and video signals only: HD‑RX‑201‑C‑E, HD‑RX‑4K‑210‑C‑E, HD‑RX‑4K‑210‑C‑E‑POE, HD‑RX‑4K‑410‑C‑E, HD‑RX‑4K‑410‑C‑E‑SW4, HD‑RX‑4K‑510‑C‑E, and HD‑RX‑4K‑510‑C‑E‑SW4. The HD‑MD402 user interface does not support configuration of those devices. They require a separate LAN connection and must be configured through their own web interface.

This product may be purchased from select authorized Crestron dealers and distributors. To find a dealer or distributor, please contact the Crestron sales representative for your area. A list of sales representatives is available online at www.crestron.com/How-To-Buy/Find-a-Representative or contact us for additional information by visiting https://www.crestron.com/contact/our-locations for your local contact.

This product is covered under the Crestron standard limited warranty. Refer to www.crestron.com/warranty for full details.

The specific patents that cover Crestron products are listed online at patents.crestron.com.

Certain Crestron products contain open source software. For specific information, please visit www.crestron.com/opensource.
