Crestron HD-MD-4K-200-1G-W KIT

4K 2×1 Scaling Auto-Switcher and DM Lite® Wall Plate Extender, White, over CATx Cable

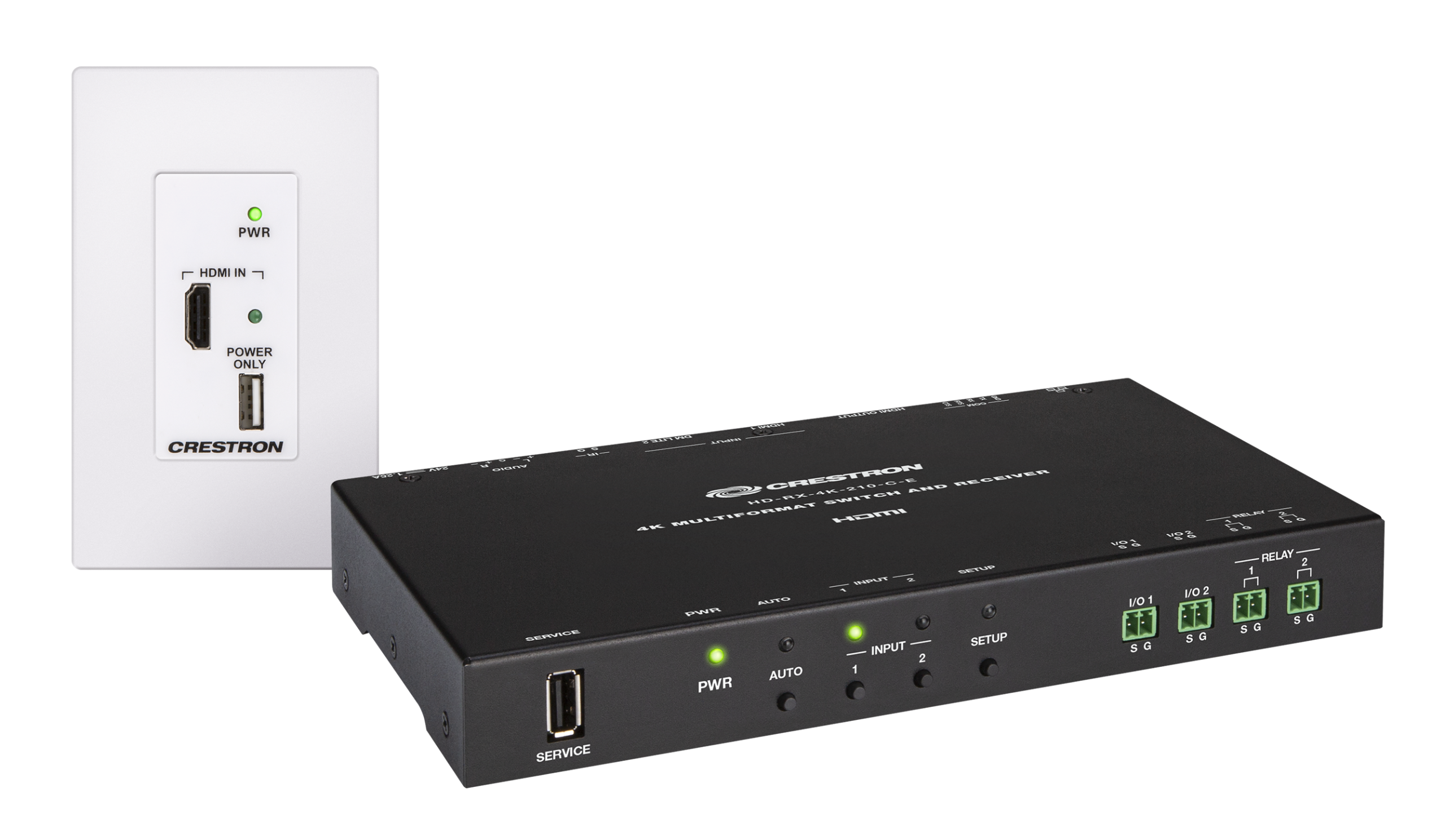

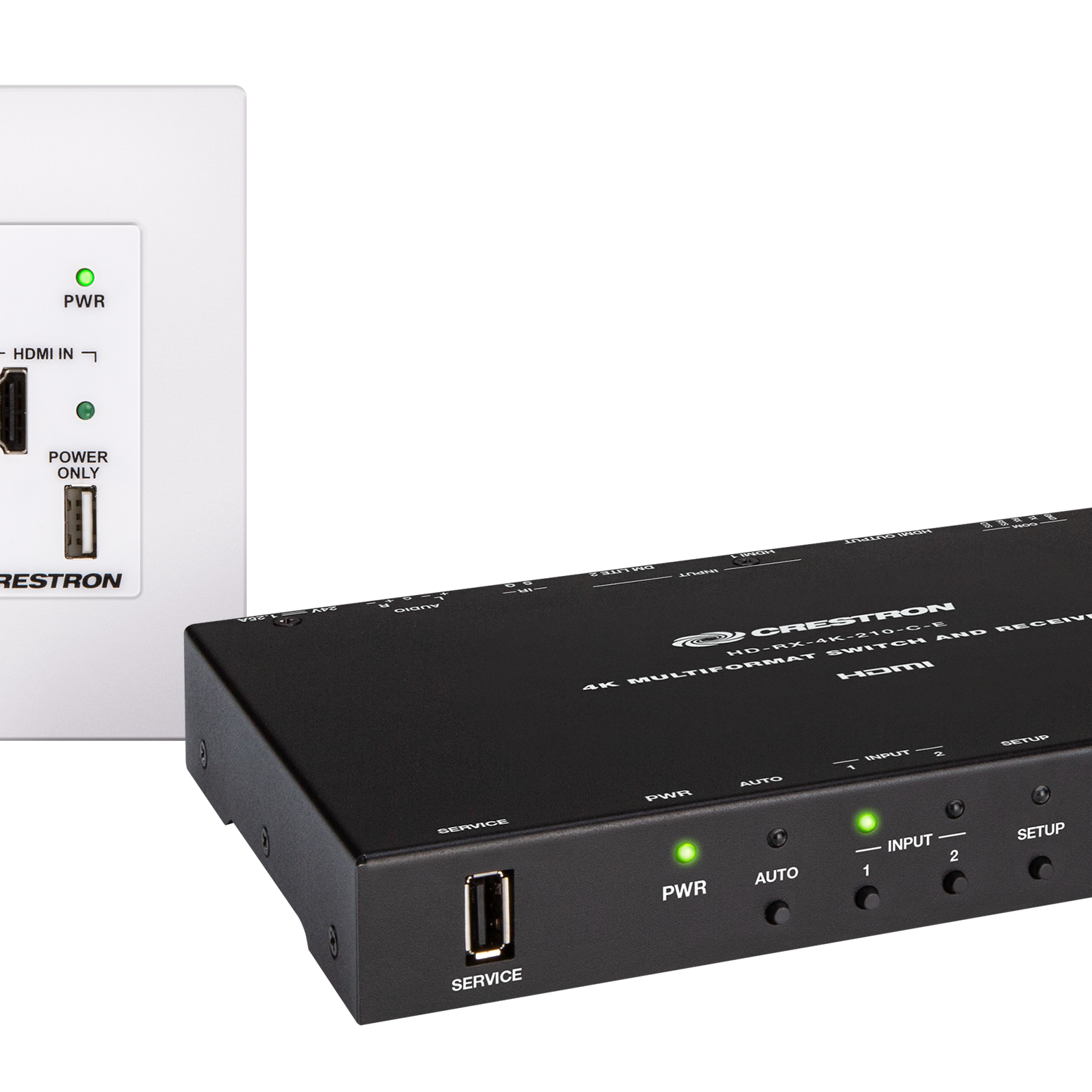

Provides a cost-effective high-definition AV presentation solution for classrooms and meeting spaces. Consists of a white 1-gang wall plate transmitter (HD-TX-101-C-1G-E Series) and a surface-mountable receiver (HD-RX-4K-210-C-E) that enable AV switching, scaling, and signal extension over a single CATx cable for up to 230 ft (70 m). Provides a single HDMI® input on the transmitter and an additional HDMI input on the receiver. 4K scaling HDMI output ensures a reliable, high-quality video image. Supports 4K60 4:2:0 video.
Categories: , Tag:

Description

The Crestron® HD-MD-4K-200-1G provides a cost-effective multimedia presentation solution for classrooms and meeting spaces. Consisting of a wall plate transmitter (HD-TX-101-C-1G-E Series) and surface-mountable receiver (HD-RX-4K-210-C-E), the HD-MD-4K-200-1G extends an HDMI® signal over a CATx (CAT5e or higher) twisted pair cable. For resolutions up to 2K, the maximum transmission distance is 230 ft (70 m). For higher resolutions up to 4K, the maximum transmission distance is 130 ft (40 m).1

NOTE: Power is transmitted over the CATx cable that connects the transmitter to the receiver.

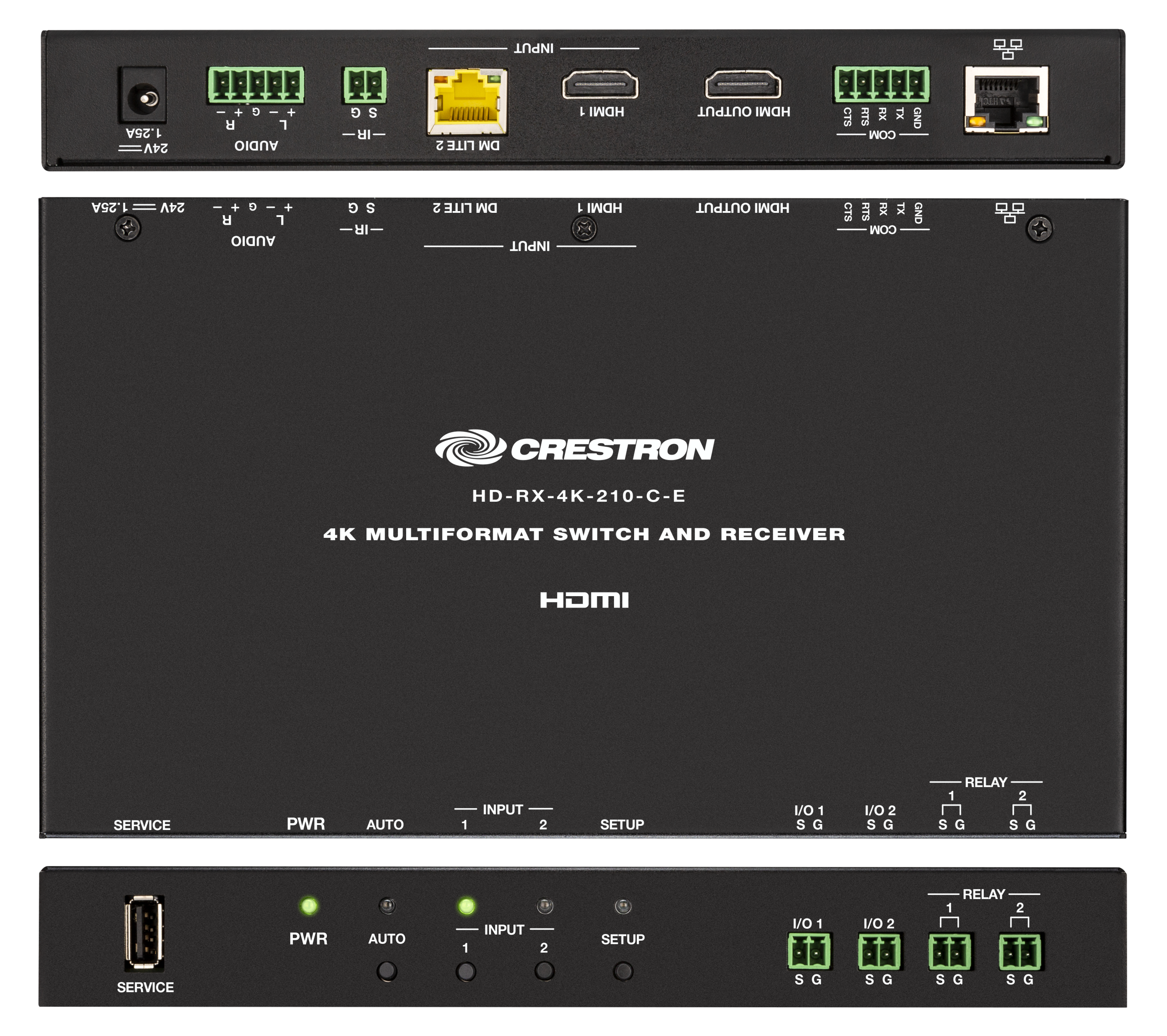

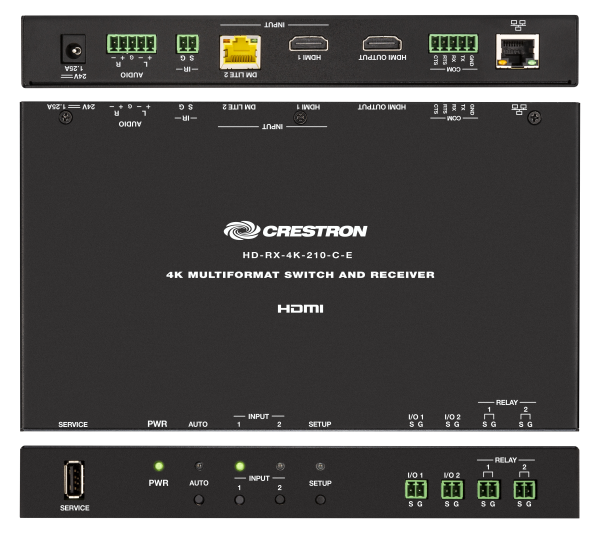

The transmitter provides one HDMI input. The receiver provides an additional HDMI input that can be connected to a local AV source or to an optional Crestron media presentation wall plate (MP-WP152, sold separately).

The HD-MD-4K-200-1G is available in two models: HD-MD-4K-200-1G-W and HD-MD-4K-200-1G-B. The HD-MD-4K-200-1G-W includes a white HD-TX-101-C-1G-E Series wall plate transmitter. The HD-MD-4K-200-1G-B includes a black HD-TX-101-C-1G-E Series wall plate transmitter.

Automatic Switching of Inputs
Automatic switching between the HDMI input on the transmitter and the HDMI input on the receiver can occur based on the last connected input or on the routing priority assigned to each input. Switching behavior is configurable using the web interface or programmable using a Crestron control system. In addition to automatic switching, input selection push buttons on the receiver enable the desired input to be selected manually.

HDMI Output with 4K Scaler
A single HDMI output with a built-in scaler connects the receiver to a display or other device with an HDMI input. Input resolutions are automatically scaled to match the native resolution of the display device, resulting in optimal image quality. For applications requiring comprehensive EDID management, the web interface can be used to ensure that every input is displayed at its optimal resolution and format. Input resolutions up to 4K60 4:2:0 are supported.

Audio De-embedding
The analog audio output on the receiver enables the HD-MD-4K-200-1G to extract the stereo audio signal from digital sources to feed a sound bar, amplified speakers, or a separate sound system. The analog audio output is active only when the input is receiving a 2-channel stereo signal.

Device Control
Equipped with onboard control ports, the receiver can control various devices in a room. The COM (RS-232) port and CEC over the HDMI output can enable the display device to be turned on or off automatically without the use of a control system. With the use of a control system, the IR port can also control the display device. Two relay ports are provided for controlling a projection screen and other low-voltage contact closure activated equipment. Two Versiport I/O ports enable the integration of devices such as power sensors and motion detectors. An Ethernet port connection to a LAN also provides control by enabling use of the built-in web interface as well as connection to a control system.

NOTE: The COM, IR, and Ethernet ports cannot be used to extend signals over the CATx cable connection between the receiver and the transmitter.

USB Power Port
A USB power port is included on the transmitter to power USB powered devices (500 mA maximum).

NOTE: No USB data is passed through the USB power port. The port cannot be used to extend USB data, video, or audio signals.

.AV Framework™ Technology Support
In addition to a built-in web interface and control system programming, the built-in .AV Framework technology of the MPC3-201 and MPC3-302 control systems can be used to control the HD-RX-4K-210-C-E as a switcher. (For information about .AV Framework technology, visit www.crestron.com/avframework.)

XiO Cloud® Service Support
The HD-MD-4K-200-1G is compatible with the XiO Cloud service, which is an IoT (Internet of Things) platform for remotely provisioning, monitoring, and managing Crestron devices across an enterprise or an entire client base. Built on the Microsoft® Azure® software platform and using industry-leading Azure IoT Hub technology, the XiO Cloud service enables installers and IT managers to deploy and manage thousands of devices in the amount of time it previously took to manage a single device. Unlike other virtual machine-based cloud solutions, Azure services provide unlimited scalability to suit the ever-growing needs of an enterprise. For more information, visit www.crestron.com/xiocloud.

Native Integration with Cisco Webex® and Touch 10 Devices
Native integration of the Cisco API enables source inputs of the HD-RX-4K-210-C-E to be added to  a compatible Cisco Webex video conference system that is controlled by a Cisco Touch 10 control unit. Eliminating the need for control system programming, integration with Cisco® devices is accomplished by using the Crestron Configuration tool, which is hosted on the Crestron website at configuration.crestron.com. Configuration includes the selection of the desired Crestron and Cisco hardware models and the assignment of HD-RX-4K-210-C-E input names and icons for use on the Cisco Touch 10 screen. The resulting configuration file is then downloaded from the website and loaded to the HD-RX-4K-210-C-E using the HD-RX-4K-210-C-E web interface. Communication is established between the HD-RX-4K-210-C-E and Cisco devices, enabling the Cisco Touch 10 to display and control the additional HD-RX-4K-210-C-E inputs.

Key Features
  • 4K60 4:2:0 capability
  • 1-gang wall plate transmitter and surface-mountable receiver with 2×1 AV switching, scaling, and signal extension functionality
  • One HDMI® input on transmitter and one HDMI input on receiver
  • One 4K scaling HDMI output on receiver
  • Automatic switching of inputs
  • Signal extension of video, audio, and power over a CATx cable—up to 230 ft (70 m) for resolutions up to 2K or up to 130 ft (40 m) for higher resolutions up to 4K
  • EDID management
  • HDCP 2.2 management
  • Stereo audio de-embedding via the analog audio output
  • IR, RS-232, relay, and I/O control ports
  • CEC (Consumer Electronics Control) capability
  • Gigabit Ethernet connectivity
  • USB power port
  • Built-in web interface for easy configuration and monitoring
  • Compatibility with Crestron® 3-Series® or later control systems
  • .AV Framework™ technology support
  • Crestron XiO Cloud™ service support
  • Native Integration with Cisco Webex® and Touch 10 devices
  • Low-profile installation
  • White wall plate transmitter (decorator style faceplate sold separately)
  • 100-240 VAC power pack included
  1. For the DM Lite CATx cable connection, use Crestron DM-CBL-8G, Crestron DM-CBL-ULTRA, or third-party CAT5e or higher cable. To safeguard against unpredictable environmental electrical noise that may impact performance at resolutions above 1080p, shielded cable and connectors are recommended for all applications and are required when bundling multiple cables in a wire run. Wire and cables are sold separately. DM Lite ports are not compatible with DigitalMedia 8G+®, HDBaseT®, PoE, or PoDM technology or any other type of CATx based interface or network.
  2. The HDMI input requires an appropriate adapter or interface cable to accommodate a DVI or Dual-Mode DisplayPort signal. CBL-HDI-DVI interface cables are available separately.
  3. The HDMI output requires an appropriate adapter or interface cable to accommodate a DVI signal. CBL-HDI-DVI interface cables are available separately.
