BOSE FREESPACE® FS2C 天花崁入揚聲器
BOSE FREESPACE® FS2C 天花崁入揚聲器

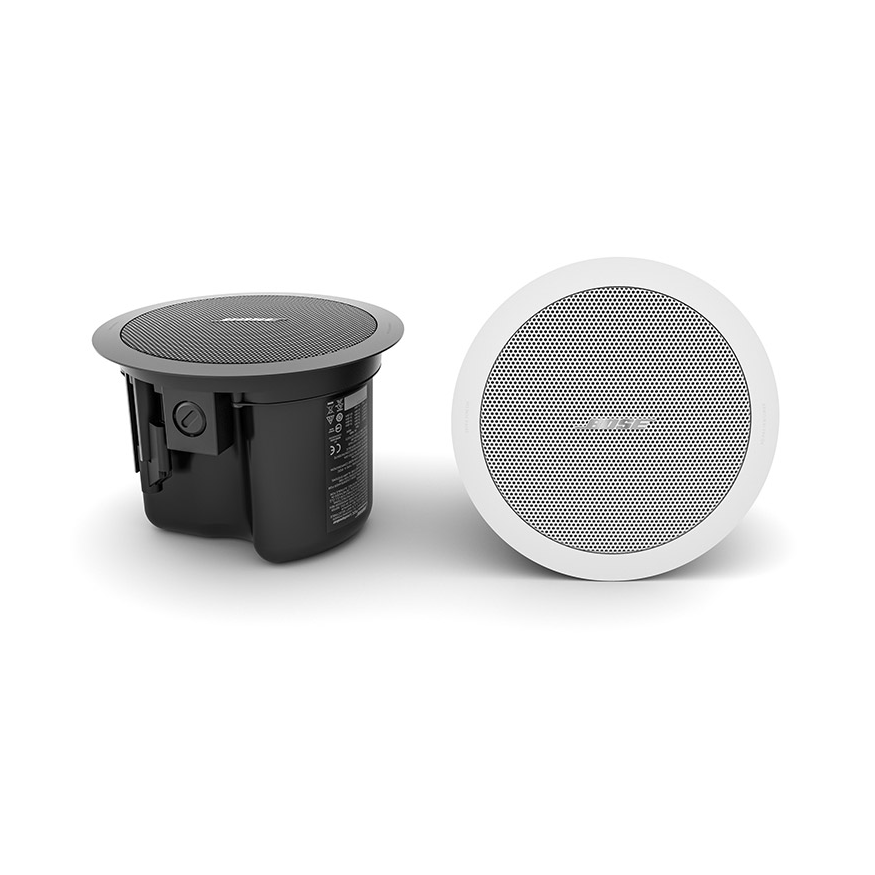

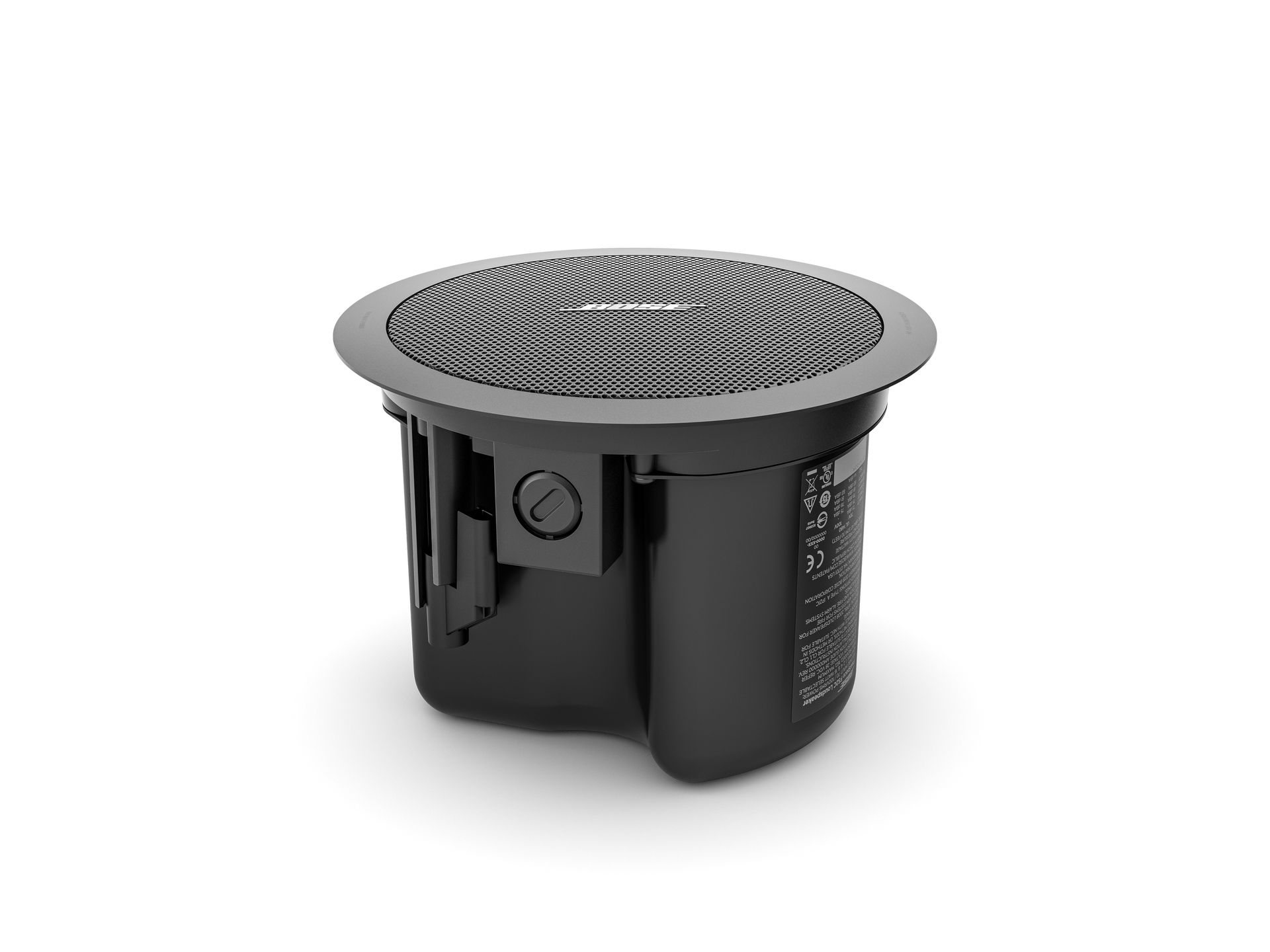

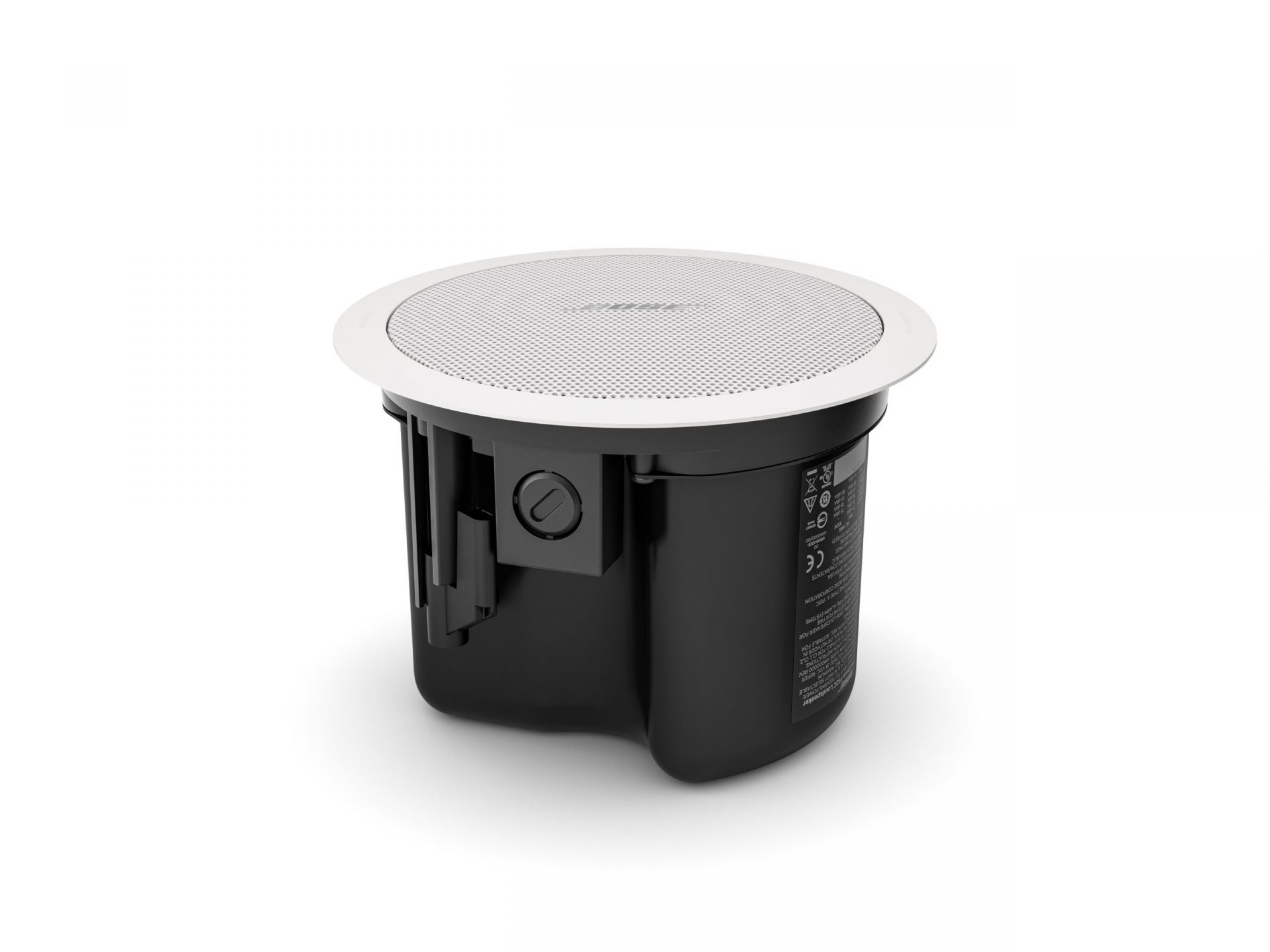

BOSE FreeSpace FS2C In-Ceiling loudspeaker

FreeSpace FS系列揚聲器，能提供高品質性能的背景音樂播放，以及清晰度極佳的語音廣播應用。 FS2C具備2.25吋全頻單體，能涵蓋低達85Hz的頻率範圍。相容16Ω 及70V/100V連接方式、金屬材質背箱丶以及直徑僅18.3公分的美觀外型，讓FS2C成為幾乎任何商業空間的理想選擇。

  • 頻率範圍 (-10 DB): 85 Hz -19 kHz
  • 標稱覆蓋範圍: 180° 錐形
  • 靈敏度 (SPL/ 1W @ 1 M): 84 dB SPL
  • 距離為1米時計算的最大SPL: 96 dB SPL (102 dB SPL峰值）
  • 功率處理能力，長時連續: 16 W (64 W峰值）
  • 適用場所:僅供室內使用

FreeSpace FS series speakers provide high-quality performance for background music playback, as well as excellent clarity for voice broadcast applications. The FS2C has a 2.25-inch full-range unit that covers a frequency range as low as 85Hz. Compatible with 16Ω and 70V/100V connections, a metal back box, and a beautiful appearance with a diameter of only 18.3 cm, the FS2C is an ideal choice for almost any commercial space.

  • Frequency range (-10 dB): 85 Hz – 19 kHz
  • Nominal coverage: 180° conical
  • Sensitivity (SPL/1W @ 1M): 84 dB SPL
  • Max SPL calculated at 1 meter: 96 dB SPL (102 dB SPL peak)
  • Power handling, long-term continuous: 16 W (64 W peak)
  • Suitable for: indoor use only
Categories: ,

Description

BOSE FREESPACE® FS2C 天花崁入揚聲器

Bose 音質滿足您的期望，各項改進滿足您的需求。FreeSpace FS 揚聲器作為我們廣受信賴的吸頂式和壁裝式揚聲器系列的新產品，在耐用性能、外觀設計、簡易安裝方面進行了重大升級，音質表現更是出奇一致。FS 揚聲器專為在背景音樂和語言擴聲應用中提供高品質性能而設計，幾乎適用於所有商業空間。該系列包含五個揚聲器，提供兩種不同級別的音質，其全新的安裝方式可匹配現代化的美學外觀。對於尋求品質始終如一的固定安裝類產品的客戶來說，FreeSpace FS 揚聲器是性能和價值的完美結合。

2.25 英寸全頻單元

低頻下限可達 83 Hz，可支持定阻（16 歐姆）和定壓 (70/100V) 兩種模式

採用前障板抽頭設置

和前障板音頻連接

自由選擇功率

FS2 型號配備 2.25 英寸全頻單元，低頻下限可達 83 Hz，可支持定阻（16 歐姆）和定壓 (70/100V) 兩種模式

保持一致音質

FS 全系列型號均可保持一致音質

享受音樂和人聲兼得的非凡體驗

通過全頻單元，體驗人聲的清晰重現和背景音樂的流暢響應

處處體驗高品質音頻
定制系統

吸頂、壁裝、垂吊安裝三種安裝方式，實現定制的混搭安裝。 DesignMax 低音箱和更大型號可進一步擴展您的系統設計選擇

房間設計更加融合

黑、白兩款升級外殼，將現代美學和實用功能相結合，同時帶有可拆卸徽標

因地制宜應對難題

全套配件足以因地制宜應對難題，滿足各種應用和安裝需求

安裝簡易輕鬆

所有型號均配備 Euroblock 輸入，吸頂型號的輸入接口均位於前障板

保障公共安全

所有型號均符合火災報警信號系統相關的 UL 1480 ULC-S541 認證，適用於關於生命安全的應用

產品詳情

  • 頻率範圍(-10 DB): 85 Hz -19 kHz
  • 標稱覆蓋範圍: 180° 錐形
  • 靈敏度 (SPL/ 1W @ 1 M): 84 dB SPL
  • 距離為1米時計算的最大SPL: 96 dB SPL (102 dB SPL峰值）
  • 功率處理能力，長時連續: 16 W (64 W峰值）
  • 適用場所: 僅供室內使用

按此查看更多資訊

相關工作案例

香港律師會安裝音響系統

BOSE FreeSpace FS2C In-Ceiling loudspeaker

The Bose sound quality you expect. The improvements you need. FreeSpace FS loudspeakers are the next step of our widely trusted line of in-ceiling and surface-mount loudspeakers, offering significant upgrades in durability, design, and ease of installation — all with remarkably consistent tonality. Engineered for high-quality performance in both background music and voice announcement applications, FS loudspeakers are ideal for almost any commercial space. The line includes five loudspeakers, two distinct levels of sound, new mounting options, and a modern aesthetic to match. For those seeking consistent, quality installed sound, FreeSpace FS loudspeakers are the perfect mix of performance and value.

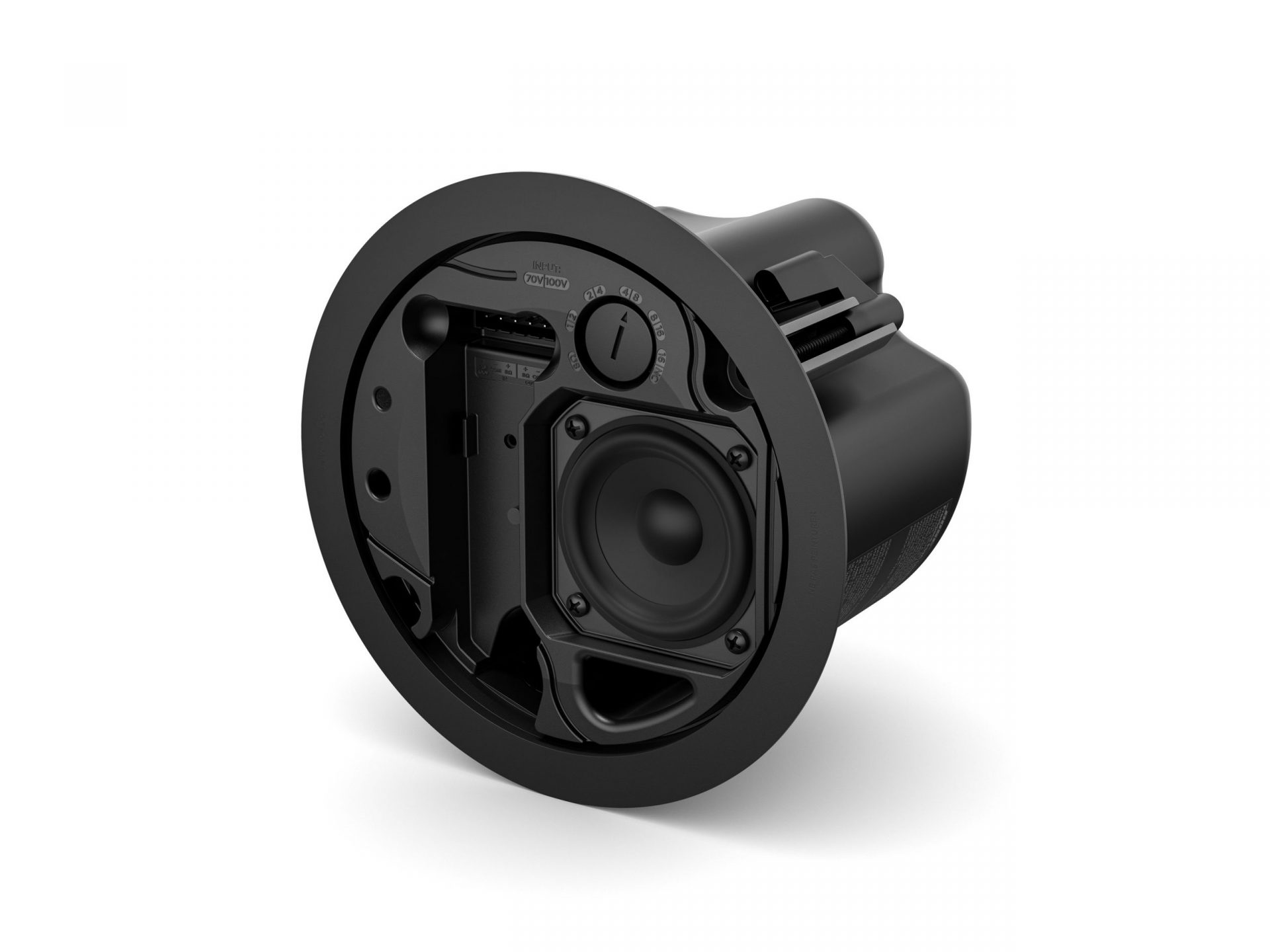

Full-range 2.25-inch transducer

Low-frequency range down to 83 Hz, 16-ohm, and 70/100V operation

Front baffle-mounted tap settings

Front-baffle audio connections

Pick your power

FS2 models feature a 2.25-inch full-range transducer, low frequency down to 83 Hz, 16-ohm and 70/100V operation

Maintain consistent tonal quality

With shared voicing across all FS models

Hear the best of both — music and voice

With transducers that offer clear voice reproduction and smooth response for background music

Bring quality sound to more places
Customize systems with confidence

Using in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mix-and-match installations. DesignMax subwoofers and larger models can expand your system design options even further

Blend with more room designs

With updated enclosures — available in black and white — that pair modern aesthetics with practical features, including removable logos

Tackle site-specific challenges

With the support of a full suite of accessories, designed to handle a wide range of applications and mounting options

Install with ease

All models feature Euroblock inputs and front-baffle input location on in-ceiling models

Support public safety

All models are UL 1480 ULC-S541-listed for use in fire alarm and signaling systems in life safety applications

Product Details

  • Frequency range (-10 dB): 85 Hz – 19 kHz
  • Nominal coverage: 180° conical
  • Sensitivity (SPL/1W @ 1M): 84 dB SPL
  • Max SPL calculated at 1 meter: 96 dB SPL (102 dB SPL peak)
  • Power handling, long-term continuous: 16 W (64 W peak)
  • Suitable for: indoor use only

Click here for more information

Relevant Job Examples

Sound system installed for The Law Society
