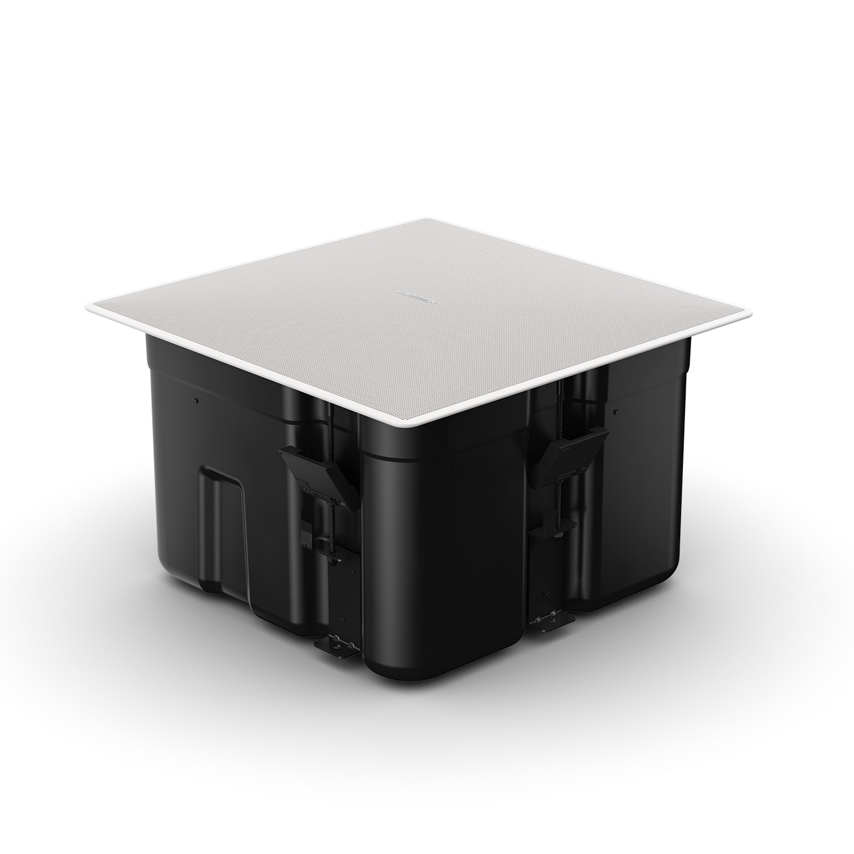

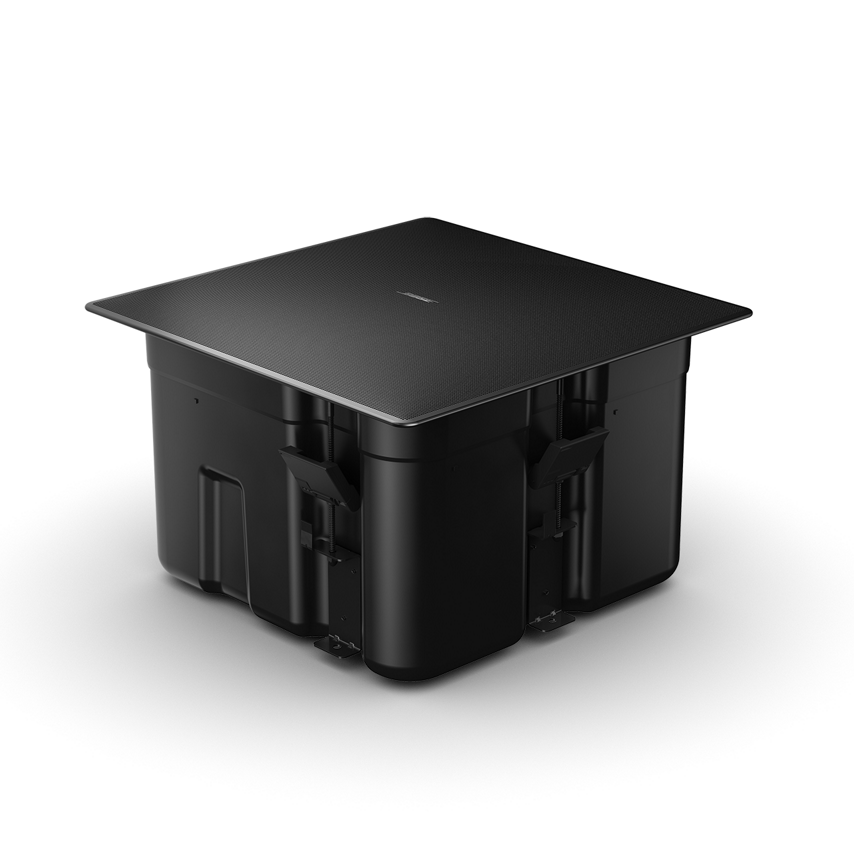

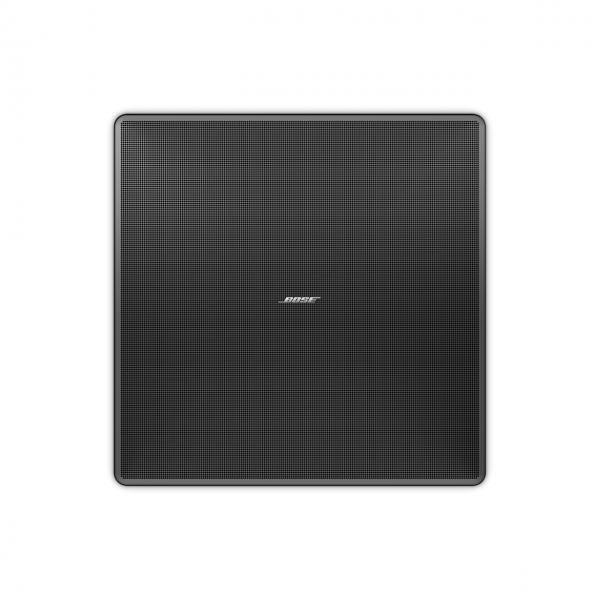

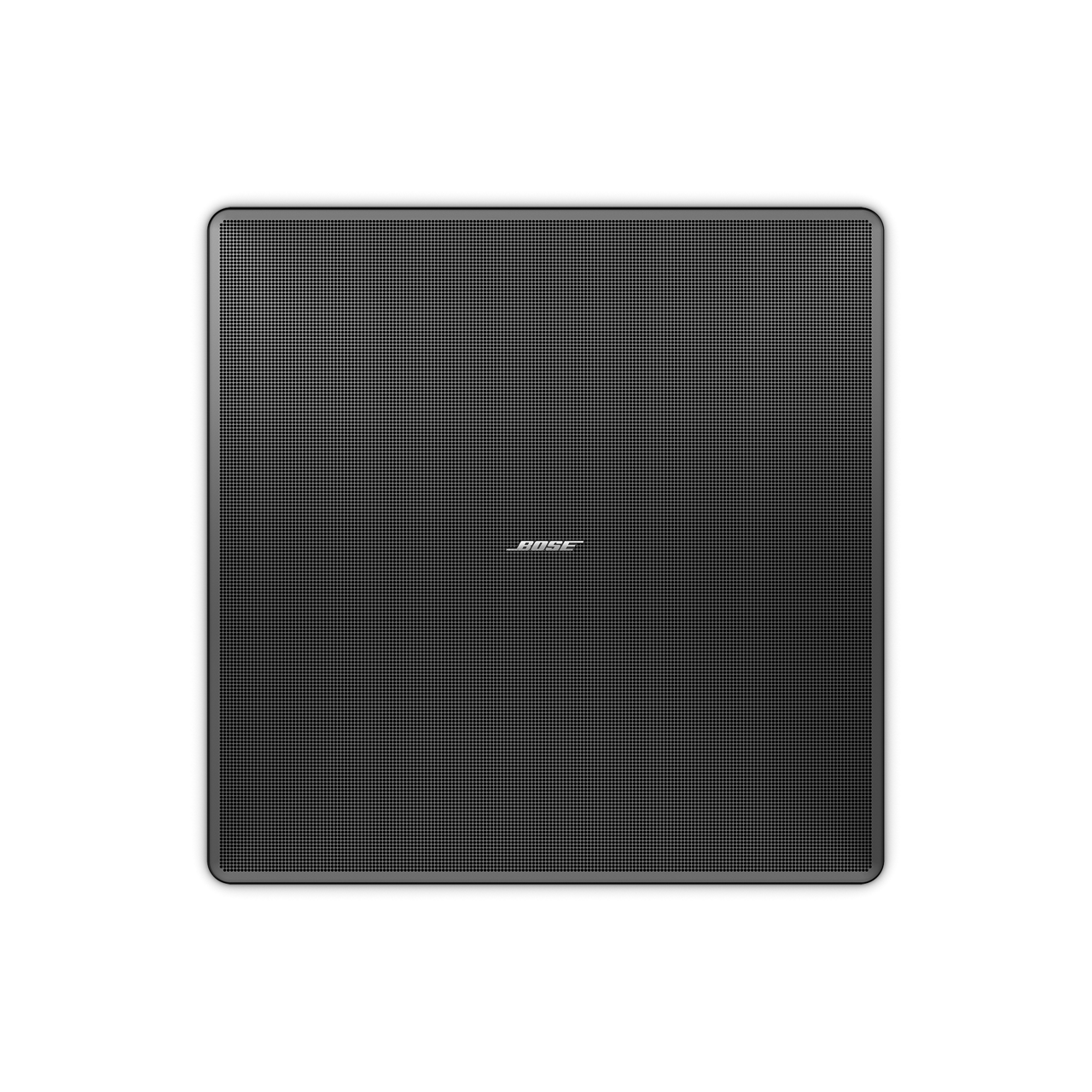

Bose EdgeMax EM180 loudspeaker

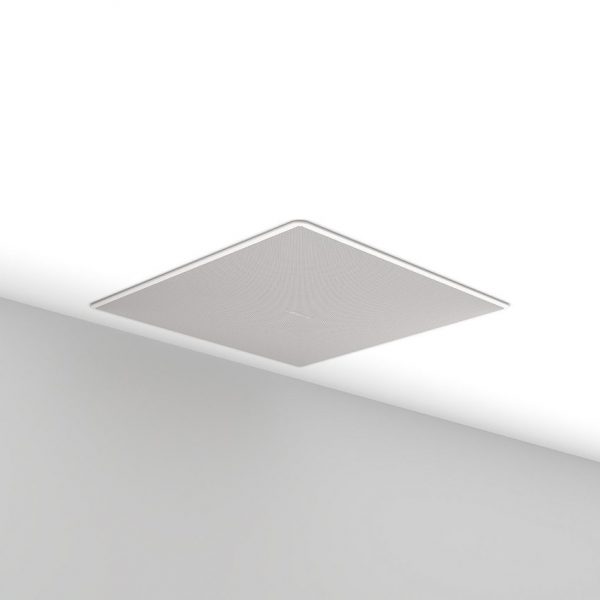

Bose Professional EdgeMax in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide technology with high-frequency compression drivers to create a new category that combines the room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax loudspeakers provide improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.

Features

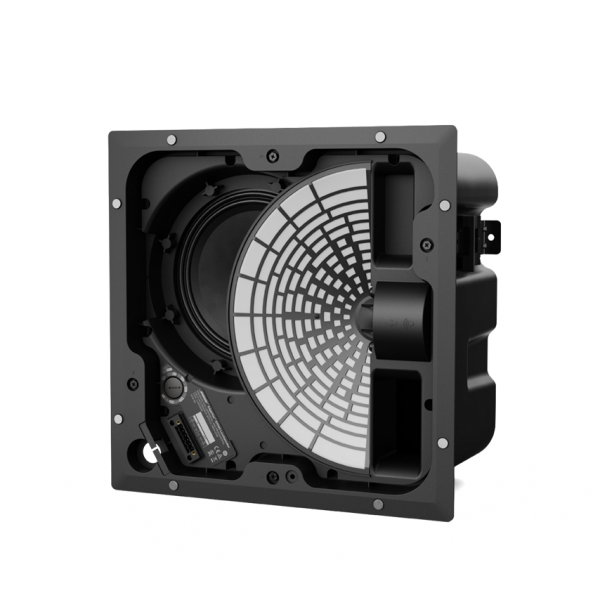

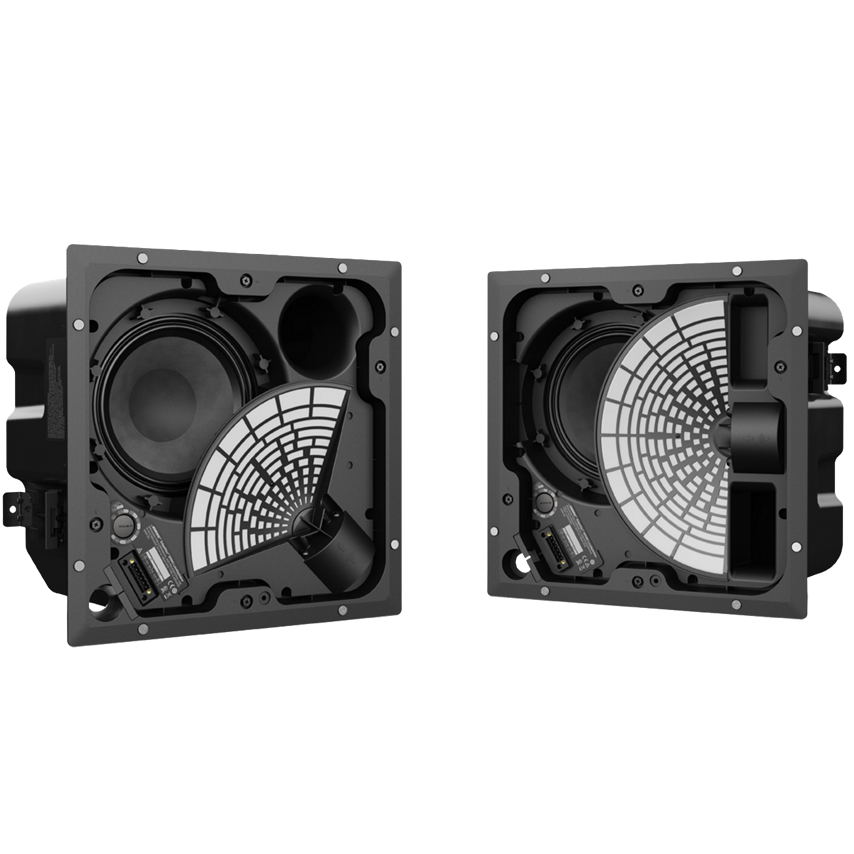

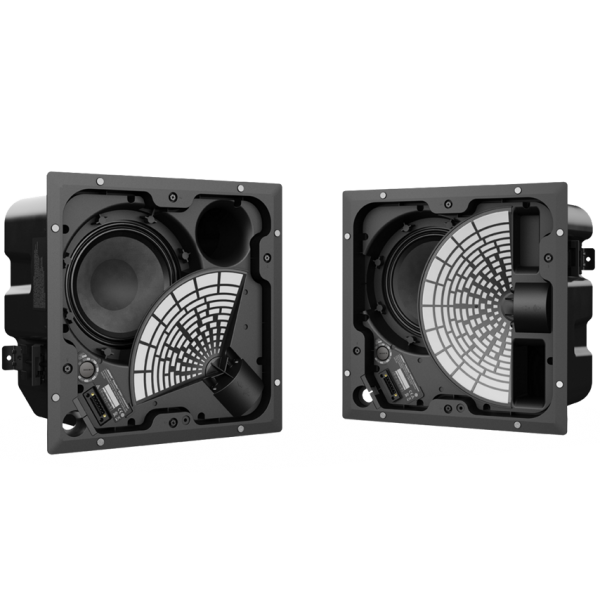

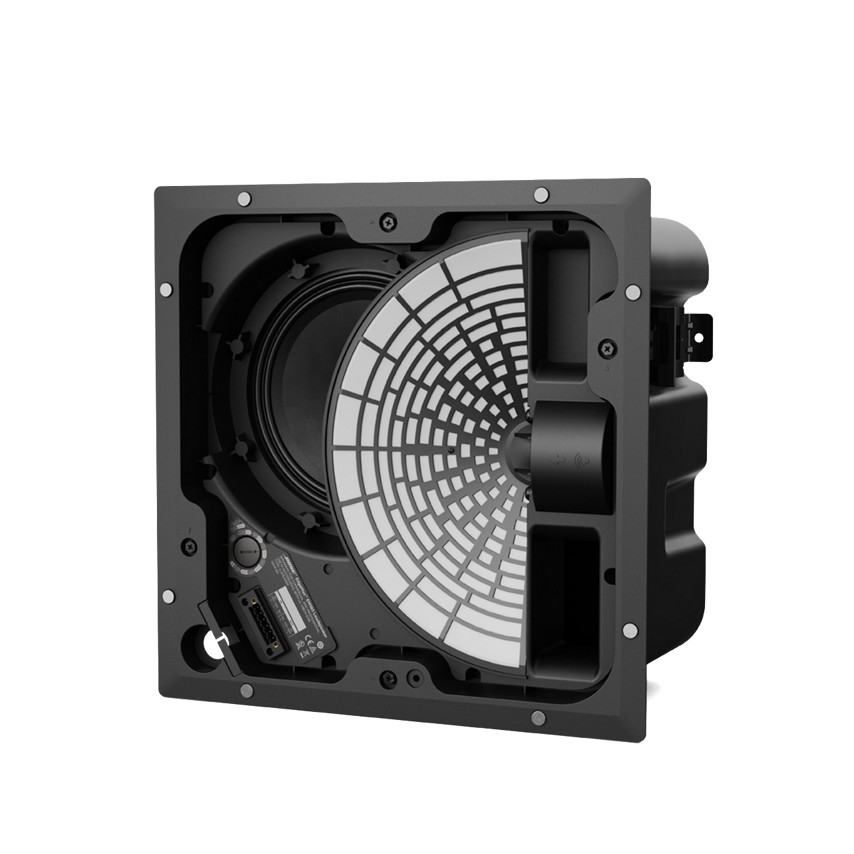

  • PhaseGuide technology – provides unique asymmetrical vertical pattern for room-filling coverage when mounting near wall-ceiling boundary

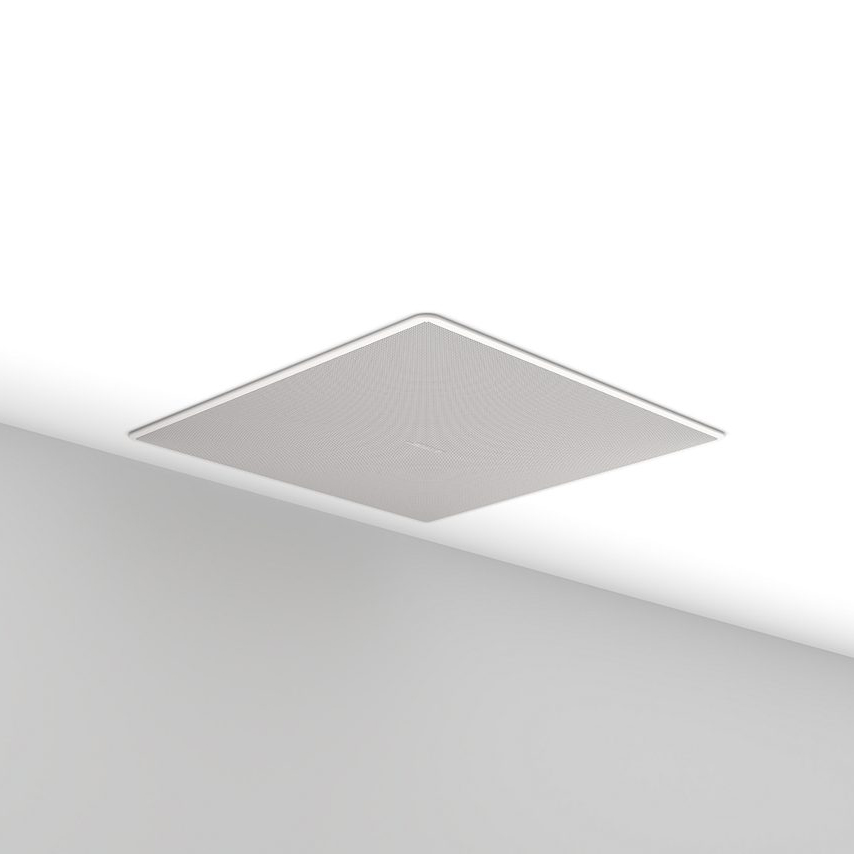

  • Provides improved room visual appearance – for demanding interior designs by eliminating center-of-ceiling or wall-mounted loudspeakers
  • Nominal 180° horizontal coverage – designed for in-ceiling mounting along wall coverage zones
  • High-frequency compression driver – for best-in-class audio quality with superior frequency response and coverage consistency versus typical dome tweeters
  • 8-inch woofer – with wall-boundary loading provides extended bass impact
  • 2-way passive crossover with 70/100V transformer

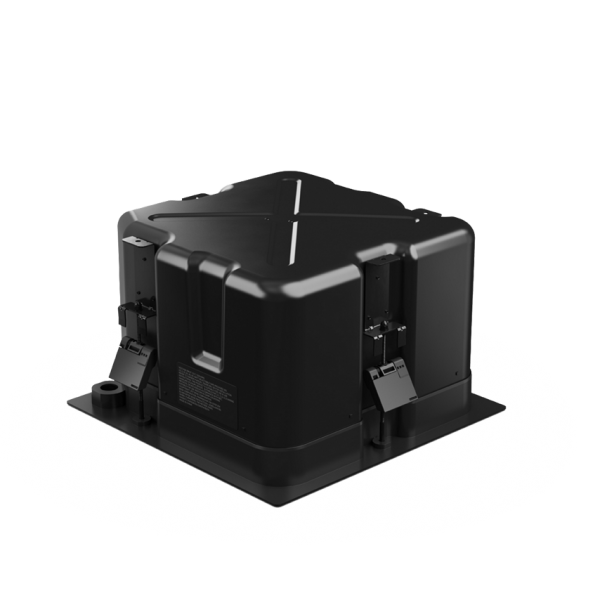

  • New auto-hold, spring-loaded mounting arms – for fast, easy installs

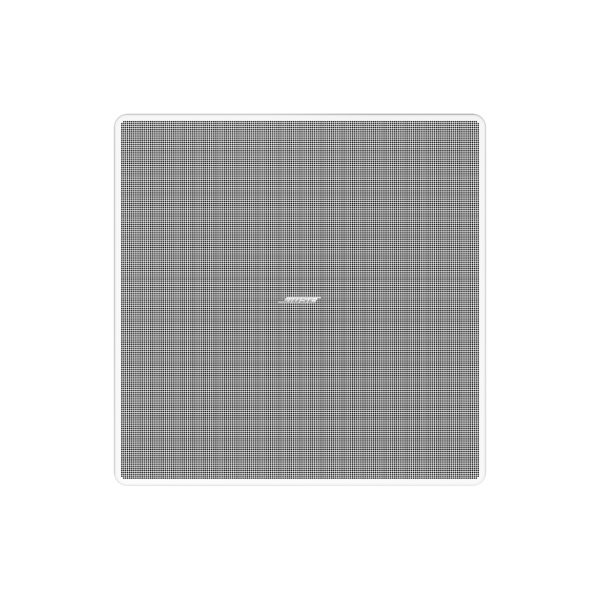

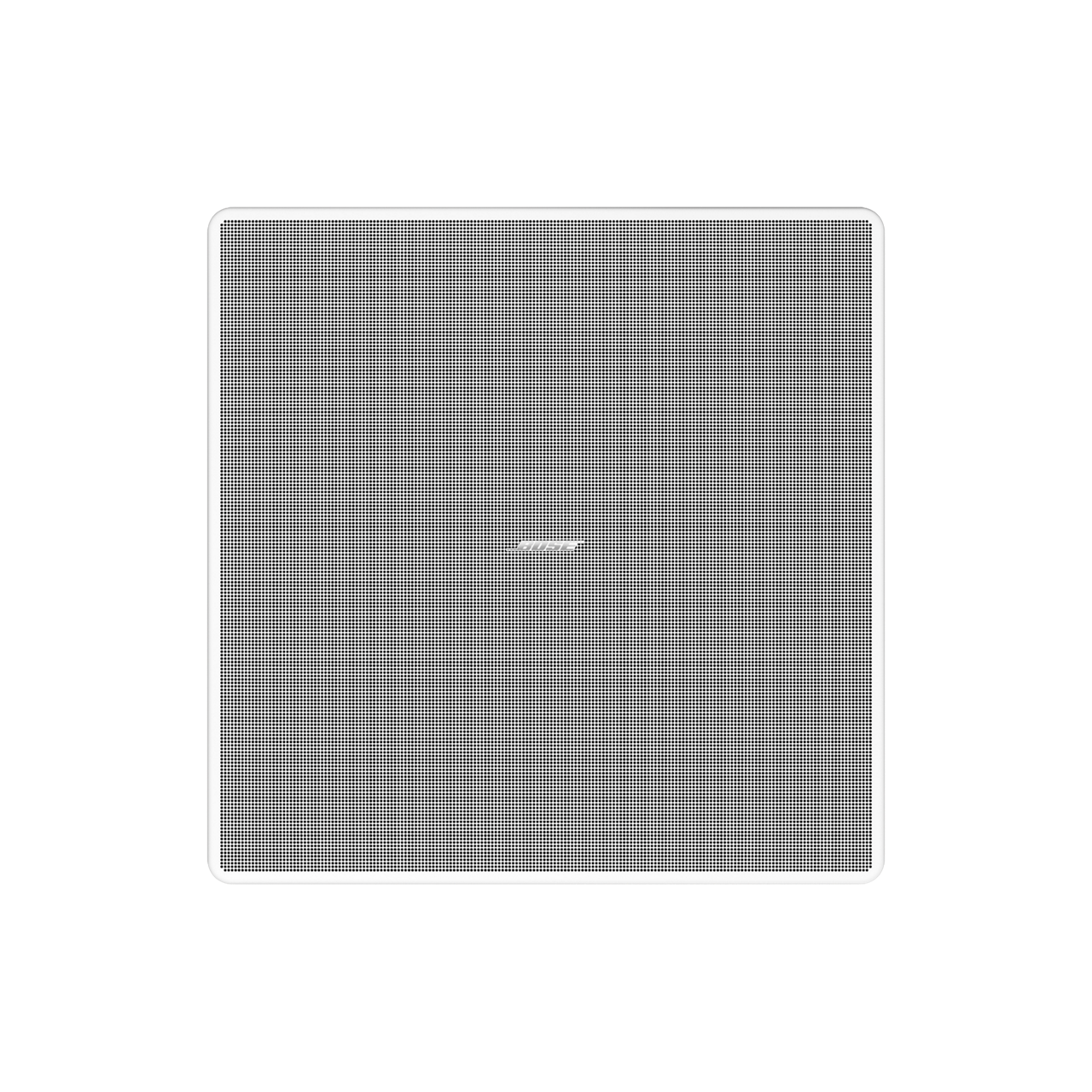

  • Magnetically attached grill – for quick access to wiring and tap settings
  • UL1480A listing – for air-handling (plenum) space installation
Categories: ,

Description

Specs

Technical Summary

Frequency Response (+/-3 dB)

50 Hz – 18 kHz

Frequency Range (-10 dB)
45 Hz – 20 kHz

Nominal Dispersion
75° Vertical
180° Horizontal

Long-Term Power Handling
125 W (500 W peak)

Sensitivity (SPL / 1 W @ 1 m)
93 dB SPL

Maximum SPL @ 1 m
114 dB SPL (120 dB SPL peak)

Transducers
1 x 8-inch woofer
1 x compression driver

Nominal Impedance
8 Ω (transformer bypassed)
